AM/FM Single Compact Disc Radio

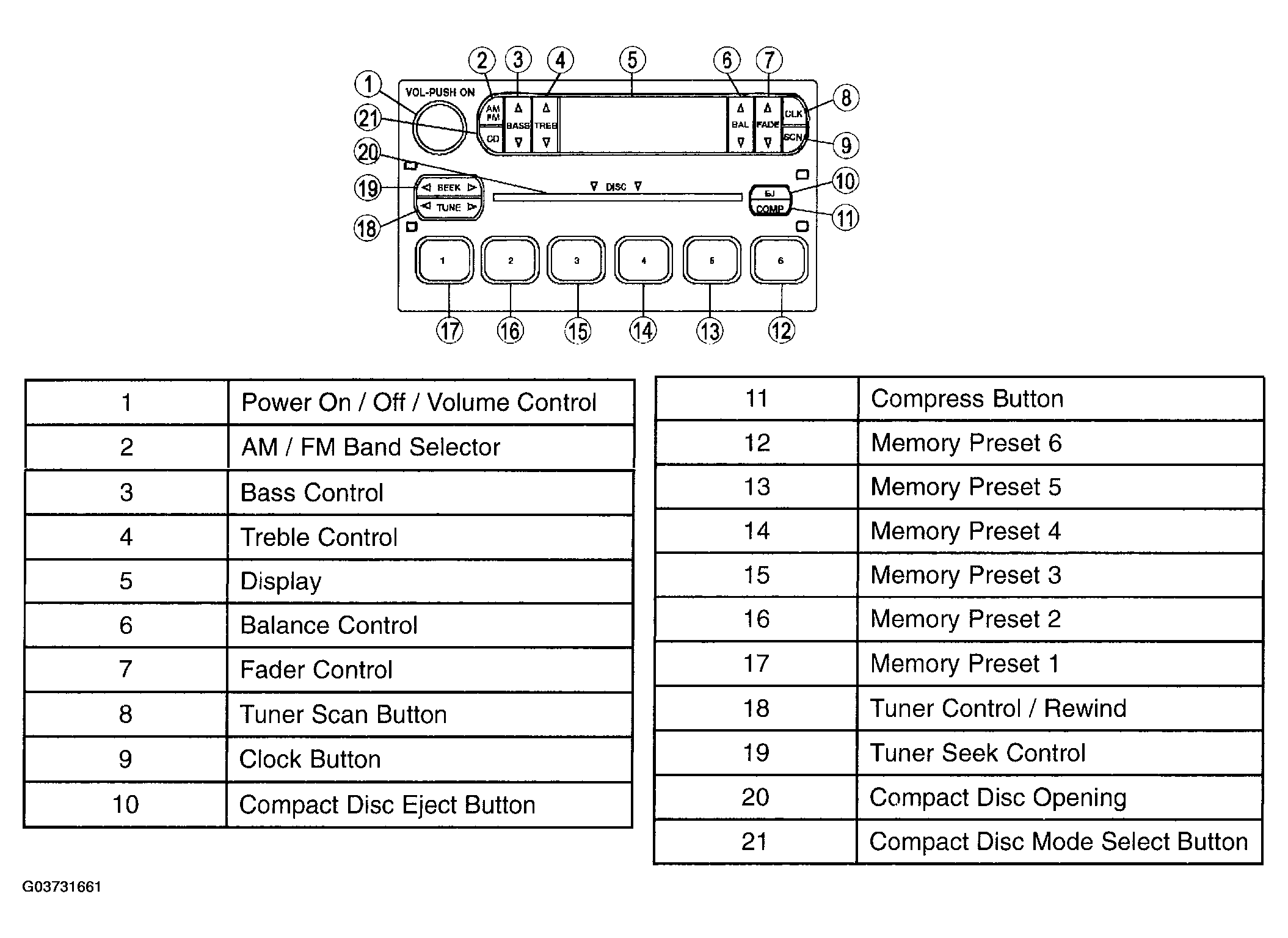

Fig 1: Identifying AM/FM Single Compact Disc Radio Control Panel
G03731661Courtesy of MAZDA MOTORS CORP.
