Seat Bucket Front Removal/Installation: Removal

WARNING:
  • The safety belt pretensioner is a pyrotechnic device. Always wear safety glasses when repairing an air bag equipped vehicle and when handling a safety belt buckle pretensioner or safety belt retractor pretensioner. Never probe a pretensioner electrical connector. Doing so could result in pretensioner or air bag deployment and could result in personal injury.
WARNING:
  • To reduce the risk of personal injury, do not use any memory saver devices.
NOTE:
  • If a seat equipped with a seat mounted side air bag and/or a safety belt pretensioner (if equipped) system is being serviced, the supplemental restraint system (SRS) must be depowered.
NOTE:
  • The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
NOTE:
  • The SRS must be fully operational and free faults before releasing the vehicle to the customer.

All seats

  1. Depower the SRS. See SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEACTIVATION AND REACTIVATION .
  2. Position the seat to its forward most position.

    3. 40 percent seat

  3. Remove the rear bolts.
    Fig 1: Removing Rear Bolts Of 40 Percent Seat
    G03731404Courtesy of MAZDA MOTORS CORP.
  4. Position the seat to its rear most position.
  5. Remove the front bolts.

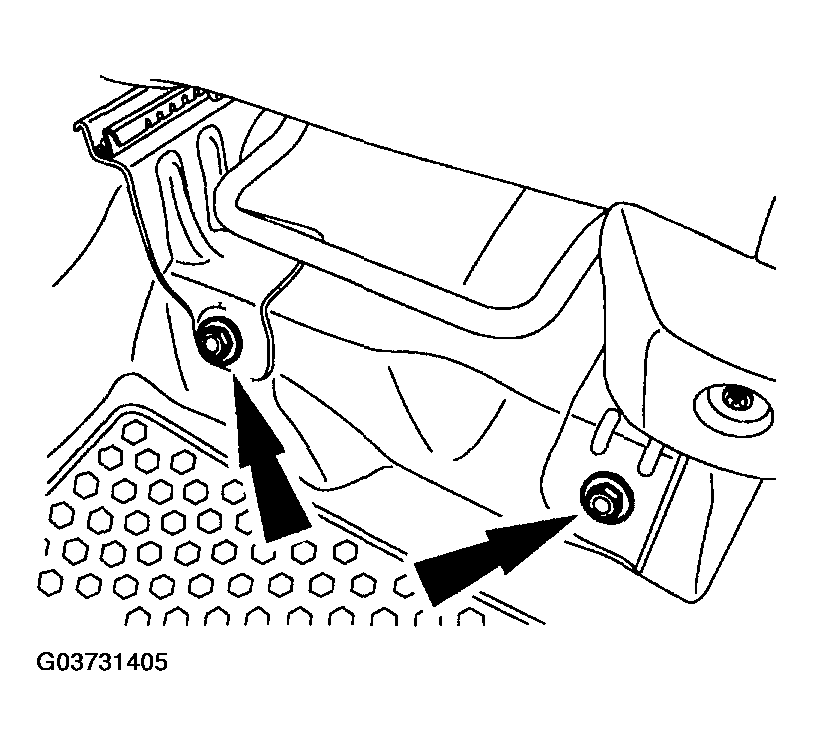

    Fig 2: Removing Front Bolts Of 40 Percent Seat
    G03731405Courtesy of MAZDA MOTORS CORP.
  6. Disconnect the safety belt buckle pretensioner electrical connector.
    Fig 3: Disconnecting Safety Belt Buckle Pretensioner Electrical Connector
    G03731406Courtesy of MAZDA MOTORS CORP.
  7. Remove the 40 percent seat.

    8. Vehicles with 60 percent seat

  8. Pull up and slide the safety belt buckle bolt cover up the safety belt.

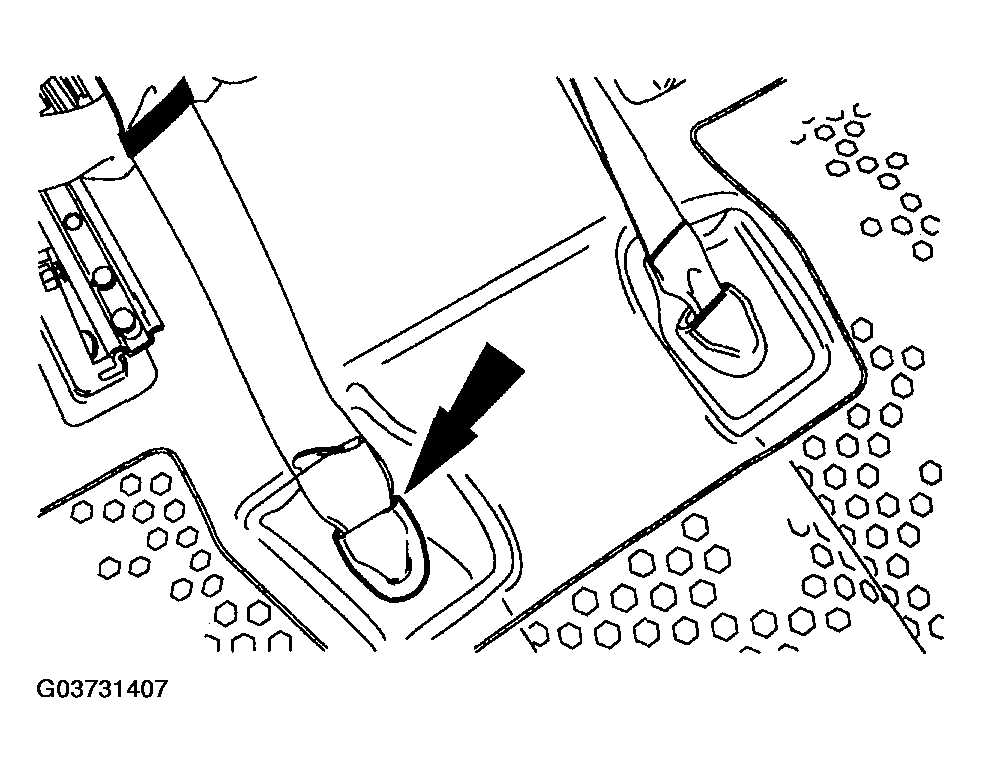

    Fig 4: Pulling Up And Sliding Safety Belt Buckle Bolt Cover Up Safety Belt (60 Percent Seat)
    G03731407Courtesy of MAZDA MOTORS CORP.
  9. Using special tool 501-010, remove the safety belt buckle bolt.

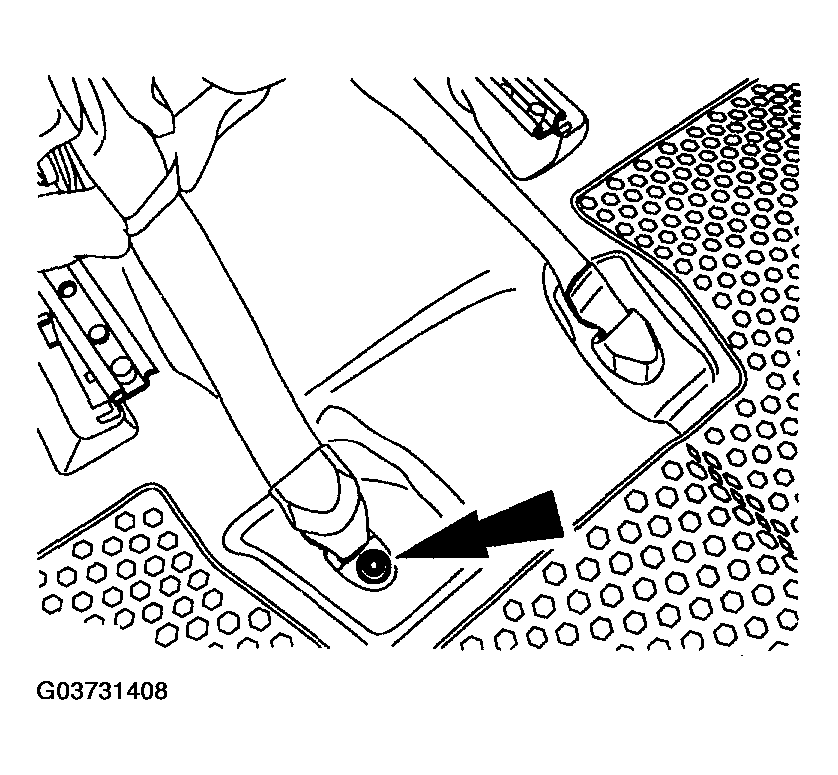

    Fig 5: Removing Safety Belt Buckle Bolt
    G03731408Courtesy of MAZDA MOTORS CORP.
  10. Remove the rear bolts.
    Fig 6: Removing Rear Bolts (60 Percent Seats)
    G03731409Courtesy of MAZDA MOTORS CORP.
  11. Position the seat to its rear most position.
  12. Remove the front bolts.
    Fig 7: Removing Front Bolts (60 Percent Seats)
    G03731410Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • The SuperCab and Regular Cab safety belts route differently. Note belt position for correct installation.
  13. Route the center safety belt buckle through the locating strap on the side of the seat.

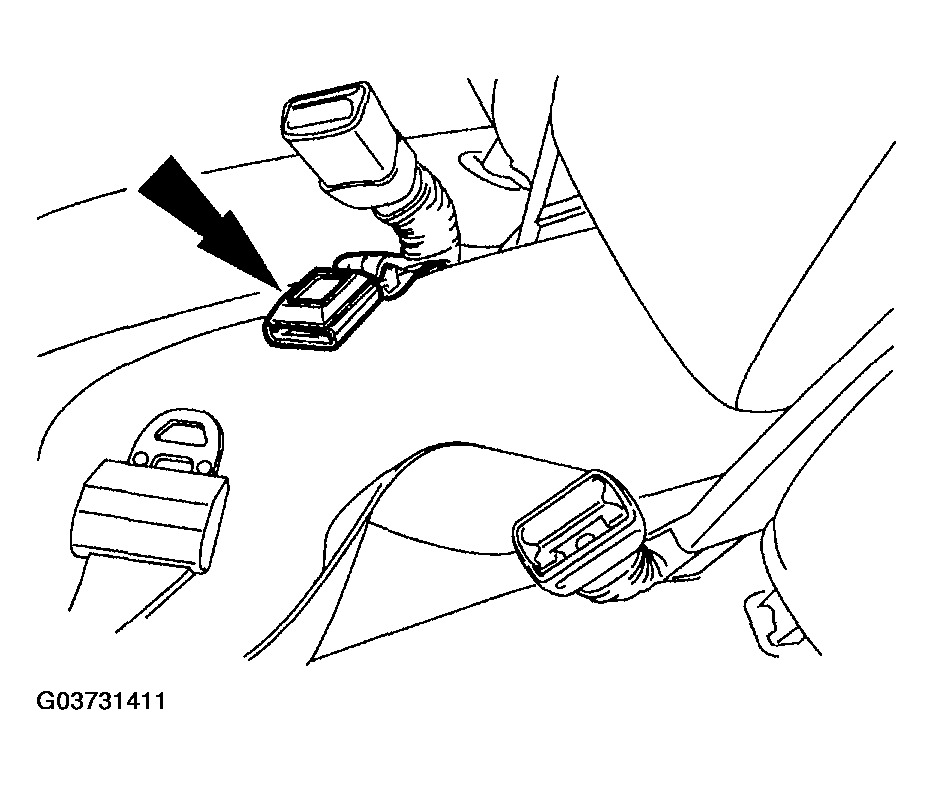

    Fig 8: Routing Center Safety Belt Buckle
    G03731411Courtesy of MAZDA MOTORS CORP.
  14. Disconnect the safety belt pretensioner electrical connector.

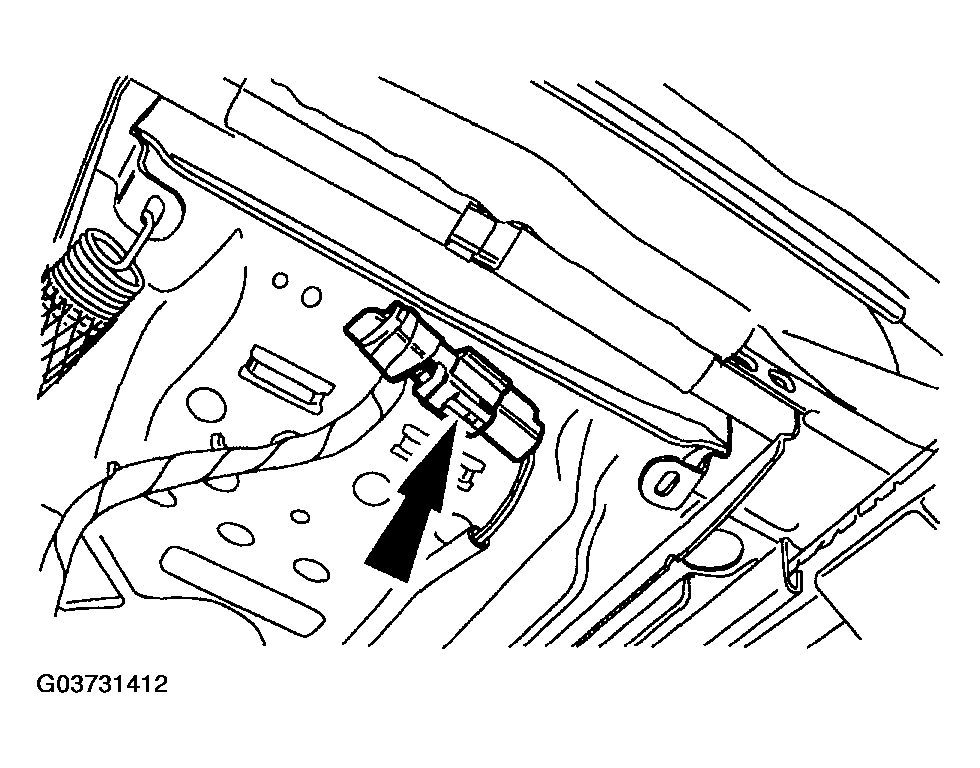

    Fig 9: Disconnecting Safety Belt Pretensioner Electrical Connector
    G03731412Courtesy of MAZDA MOTORS CORP.
  15. Remove the 60 percent seat from the vehicle.
