Power Steering Oil Pump Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Remove the air cleaner, MAF sensor, air hose No.2, air hose No.1, air pipe No.1, air bypass valve. (BP with TC)
(See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [BP WITH TC] .)
Remove the cooling fan. (See RADIATOR REMOVAL/INSTALLATION [BP] .) (See RADIATOR REMOVAL/INSTALLATION [BP WITH TC] .)
Remove in the order indicated in the table.

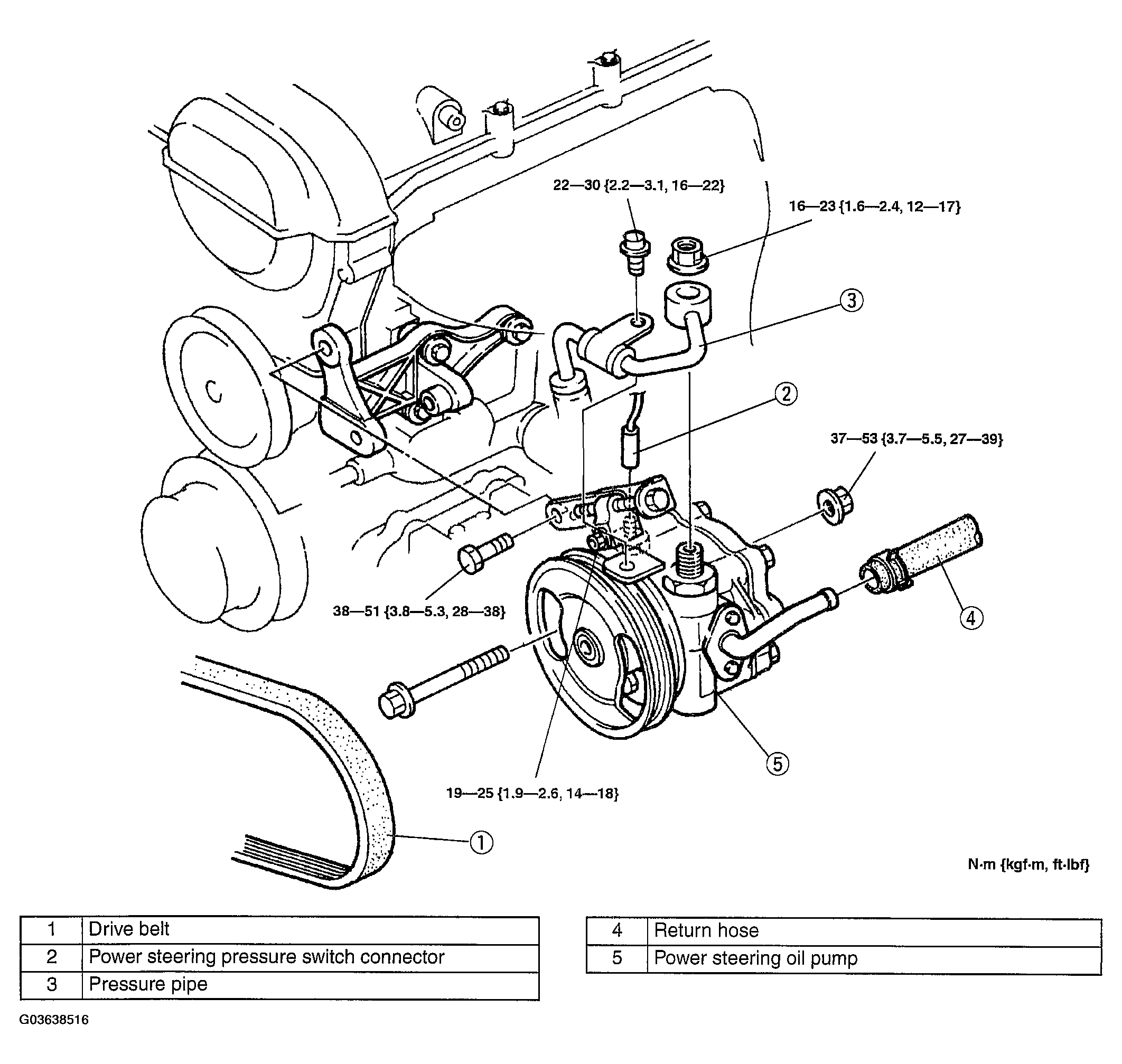

Fig 1: Removing Power Steering Oil Pump - With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Adjust the drive belt. (See DRIVE BELT ADJUSTMENT .)
