Section 587 (Power Steering System)
›
Steering Gear And Linkage Disassembly/Assembly
›
Oil Seal, Inner Guide Disassembly Note
Oil Seal, Inner Guide Disassembly Note
WARNING:
This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
Set the
SSTs
into the valve side.
Press out the oil seal and inner guide.

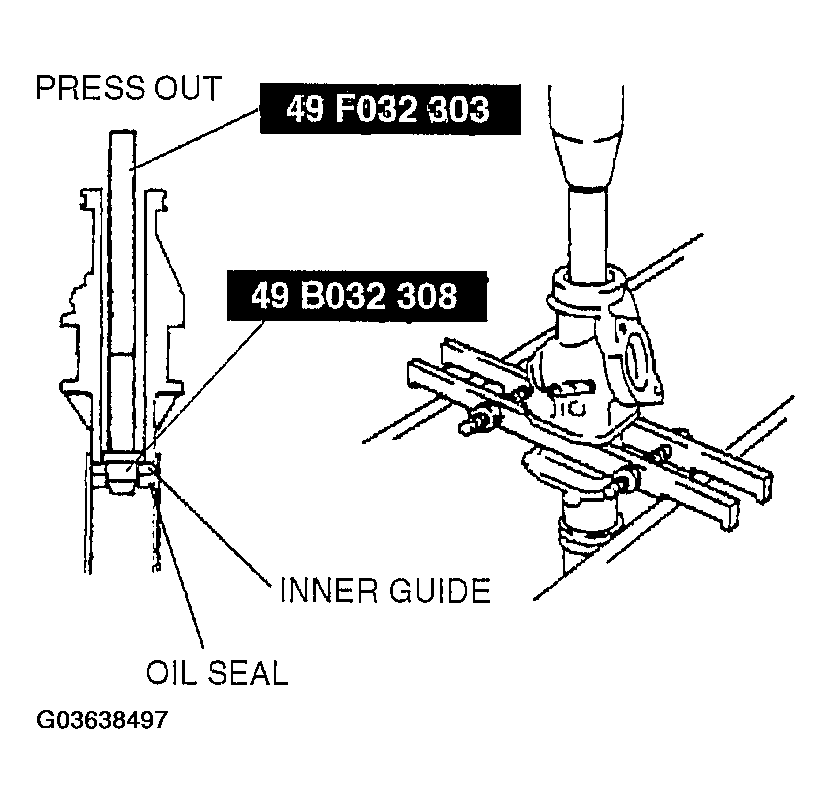

Fig 1: Pressing Out Oil Seal And Inner Guide
Courtesy of MAZDA MOTORS CORP.
