Disassembly & Reassembly

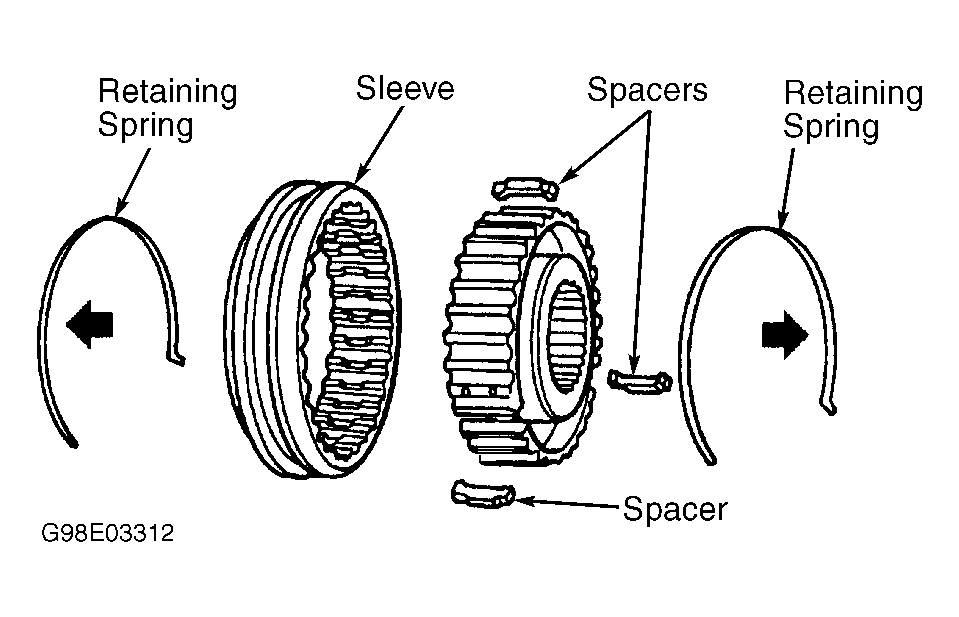

Mark parts for reassembly reference. Remove one retaining spring, flip synchronizer over and remove opposite spring. Remove 3 insert spacers and remove synchronizer sleeve. See Fig 1. Inspect for any wear or damage. To reassemble, reverse disassembly procedure.
