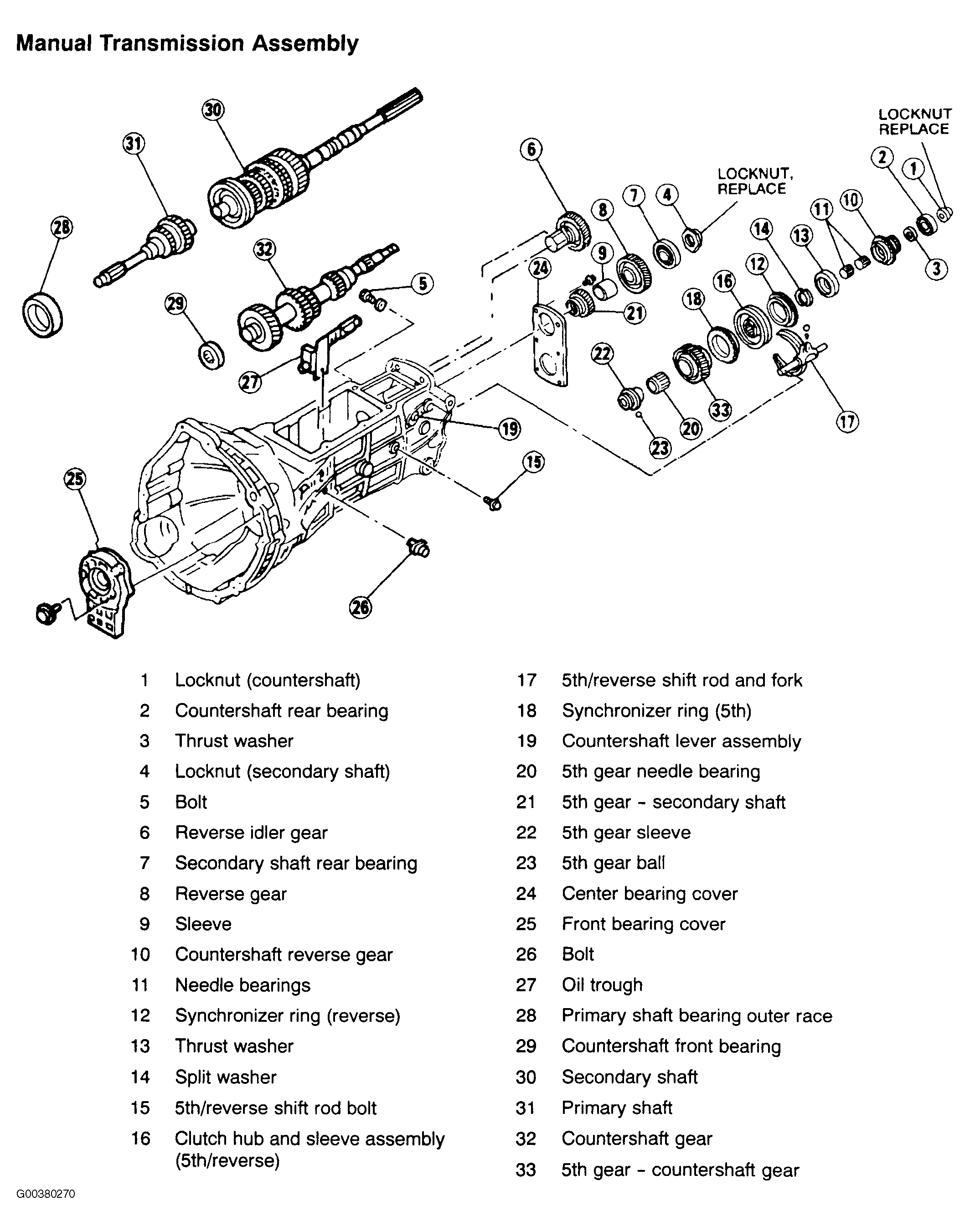

Manual Transmission [Overhaul M5OD-R1): Description
This Mazda-built transmission is a fully synchronized, 5-speed, top shift transmission. Fifth gear is an overdrive ratio. All gear changes, including reverse are accomplished with synchronizer sleeves. Transmission case is aluminum alloy with steel bearing race inserts.
