Four-Wheel Drive Control Module Connector End View (C281a)

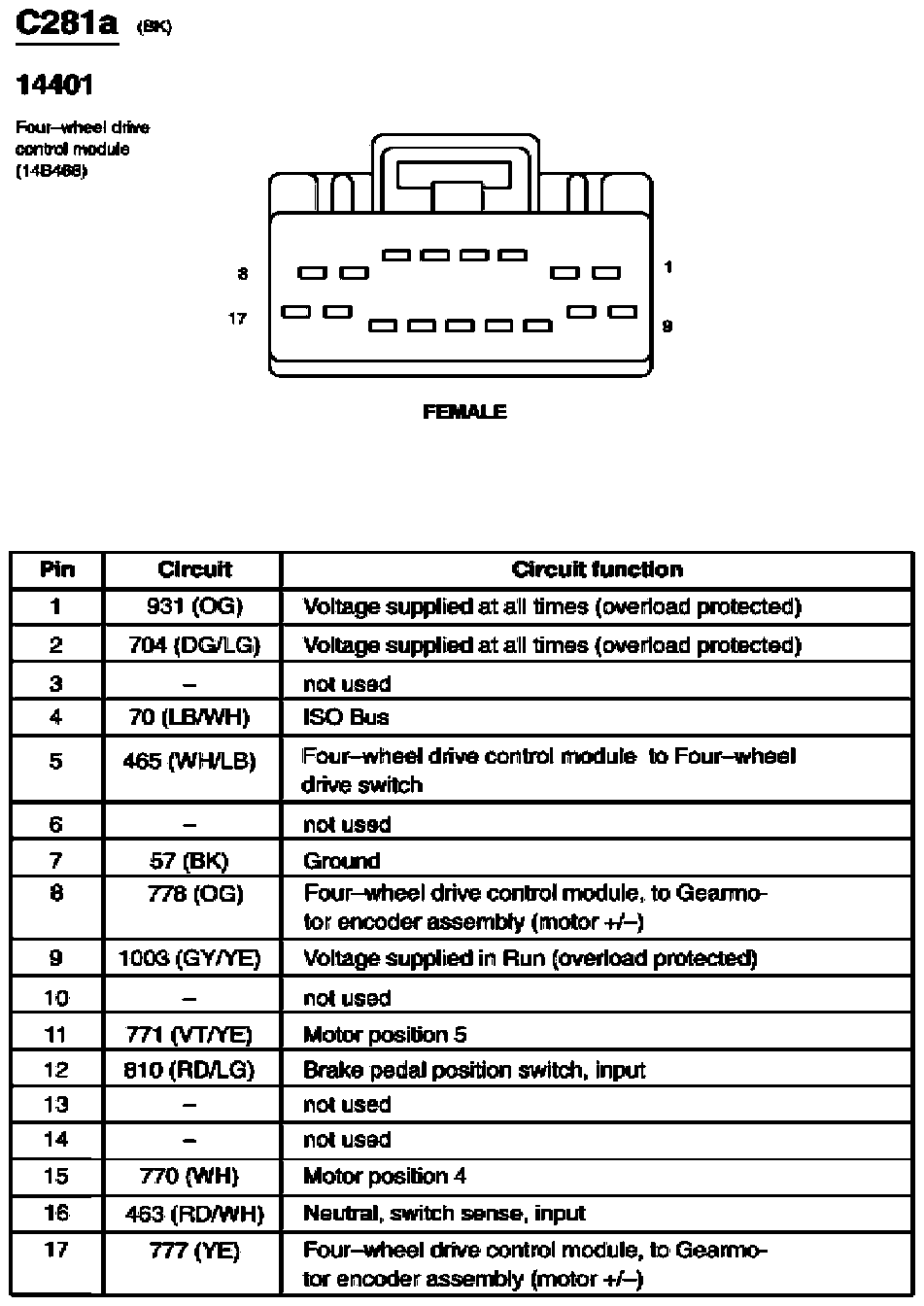

Fig 1: Four-Wheel Drive Control Module Connector End View (C281a)
G07843213Courtesy of FORD MOTOR CO.
