Selector Lever Removal/Installation

Remove the ignition switch; see IGNITION SWITCH REMOVAL/INSTALLATION .
Remove the upper steering column shroud and the rubber shift lever cover.

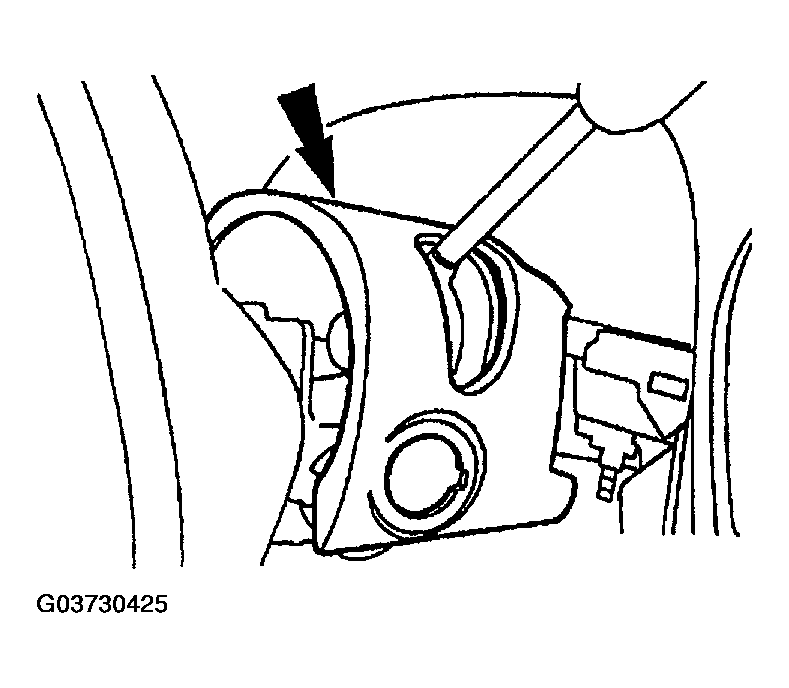

Fig 1: Removing Upper Steering Column Shroud And Rubber Shift Lever Cover
Courtesy of MAZDA MOTORS CORP.
Remove the selector lever.
1. Disconnect the shift control selector lever harness connector.
2. Remove and discard the gearshift lever pin.
3. Remove the gearshift lever.

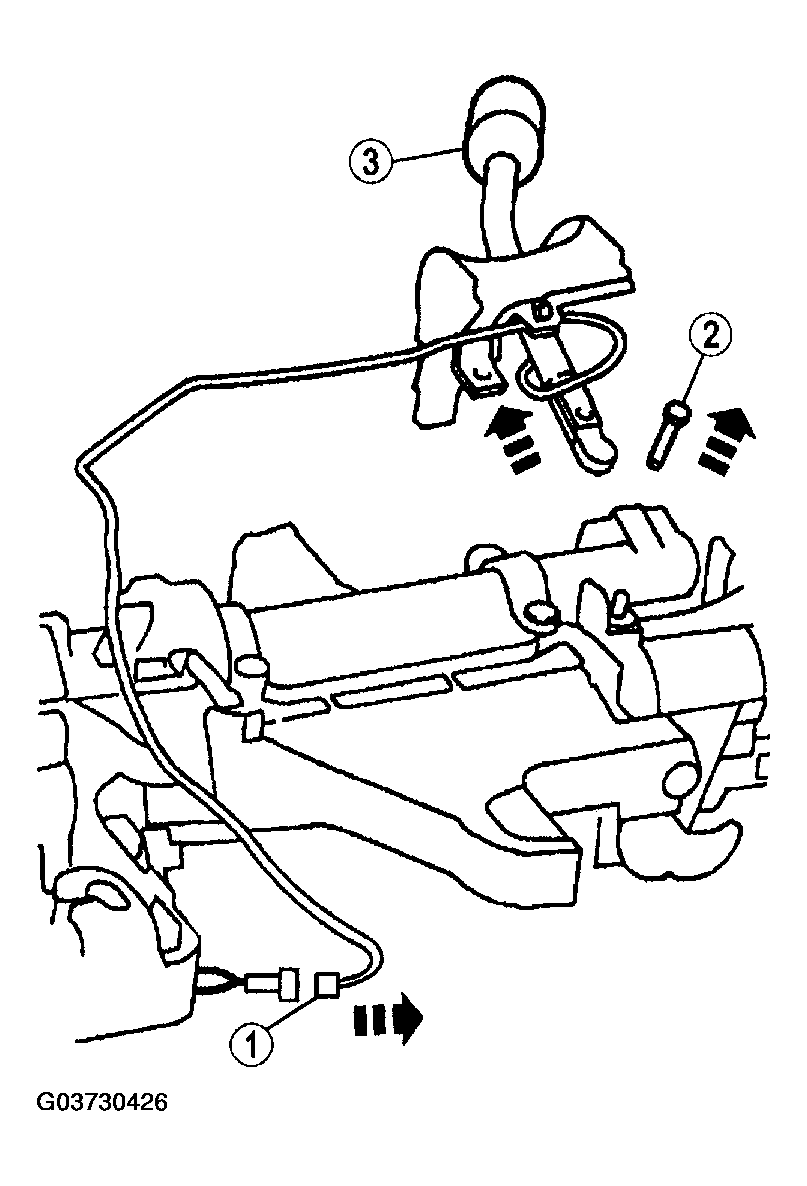

  Fig 2: Removing Selector Lever
  Courtesy of MAZDA MOTORS CORP.
  NOTE:
  - The gearshift lever pin must be replaced whenever removed.
Install in reverse order of removal.
