Flasher Control Module Connector End View
Flasher Control Module Connector End View

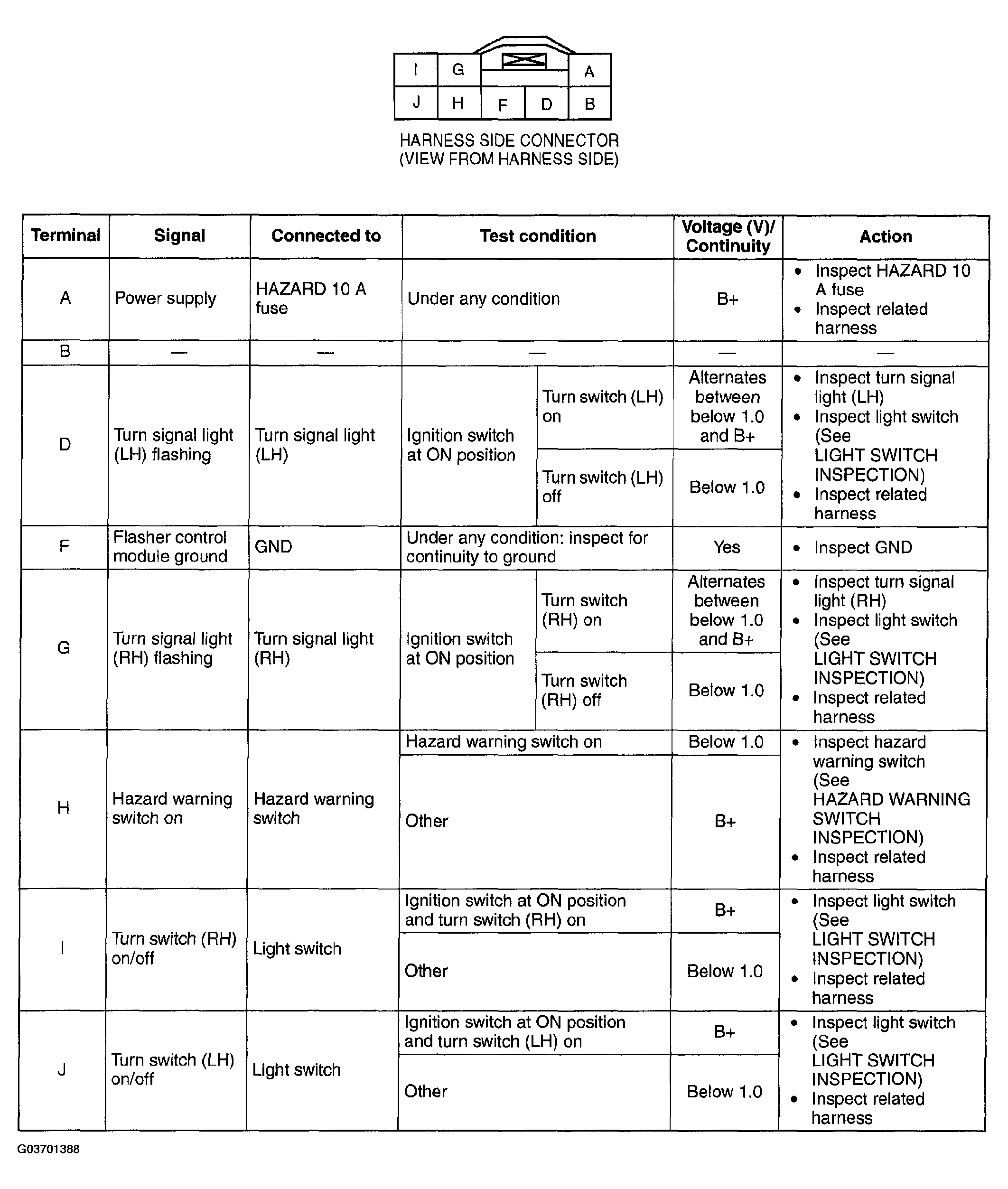

Fig 1: Flasher Control Module Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
