Inspection Of DTCS For Condition Detection Mode
›
Condition Code List
Condition Code List

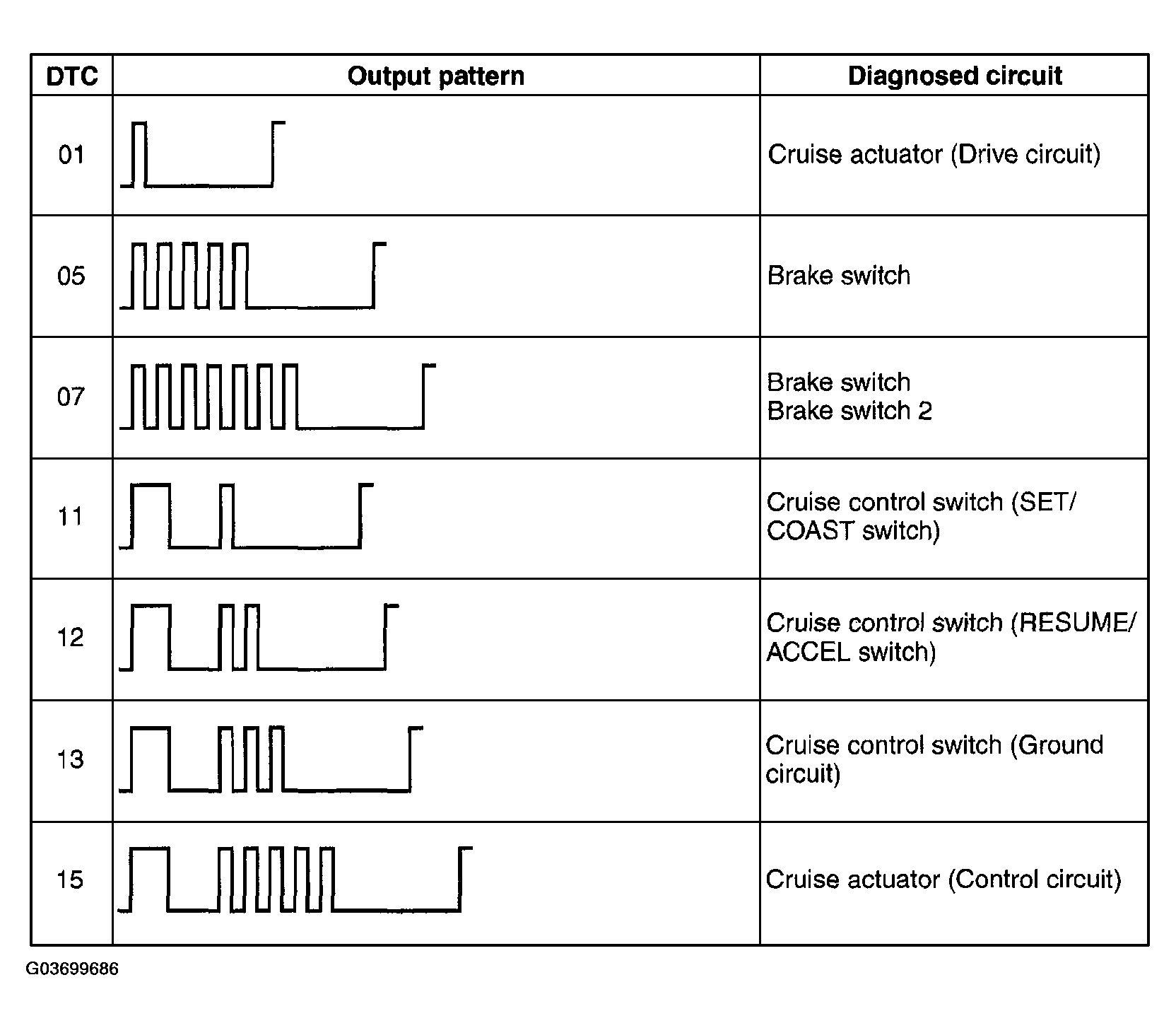

Fig 1: Identifying Condition Code List
Courtesy of MAZDA MOTORS CORP.
NOTE:
When two or more DTCs are indicated, inspect the malfunction with the smallest number first.
Courtesy of MAZDA MOTORS CORP.
