Cigarette Lighter Removal/Installation: Notes

Disconnect the negative battery cable.
Remove the meter hood. (See METER HOOD REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.

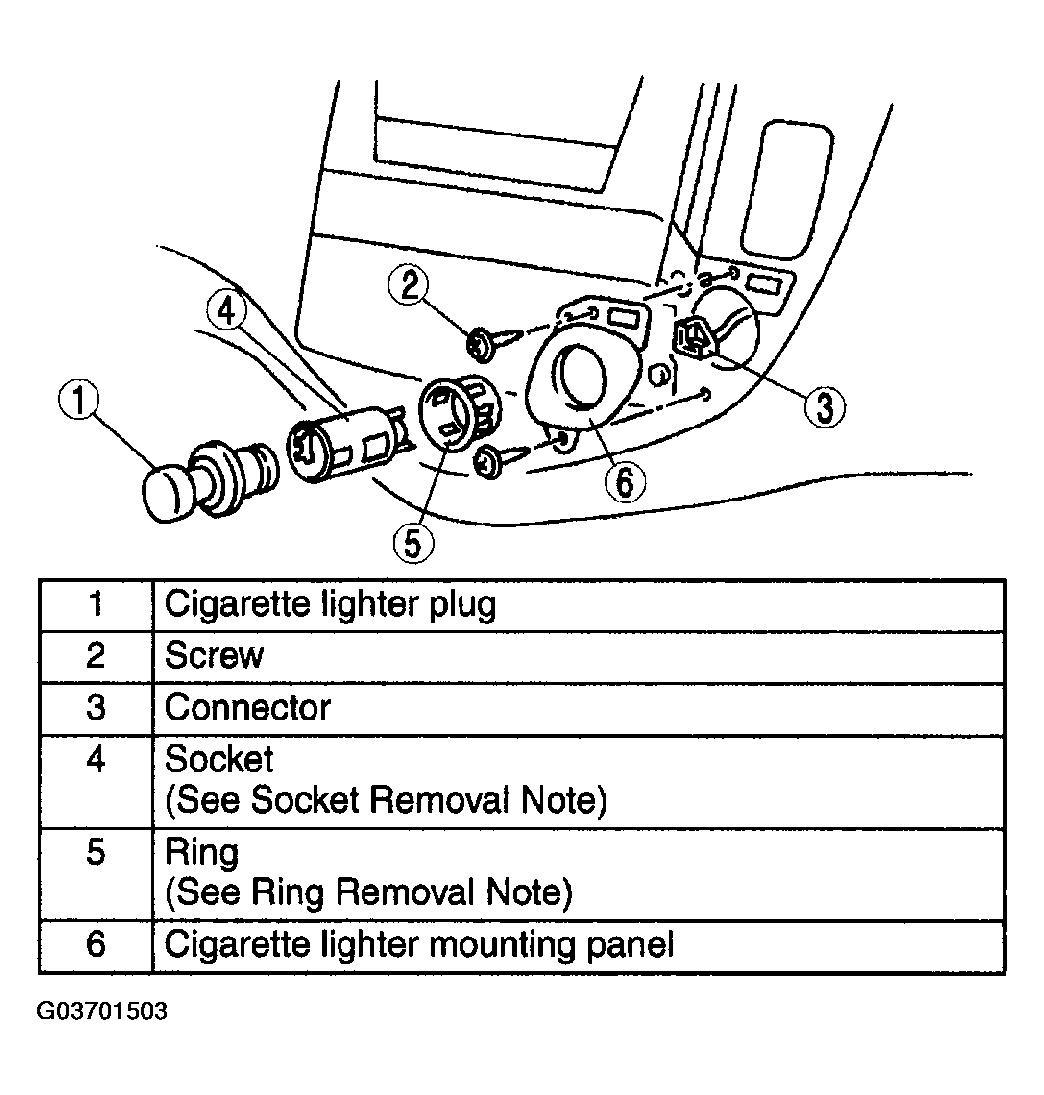

Fig 1: Removing Cigarette Lighter
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
