With PSD

  1. Disconnect the sliding door lock actuator connector.
  2. Inspect for continuity between the sliding door lock-link switch terminals using an ohmmeter.
    • If not as specified, replace the sliding door lock actuator.
    Fig 1: Sliding Door Lock-Link Switch Terminals Continuity Chart (With PSD)
    G03701208Courtesy of MAZDA MOTORS CORP.

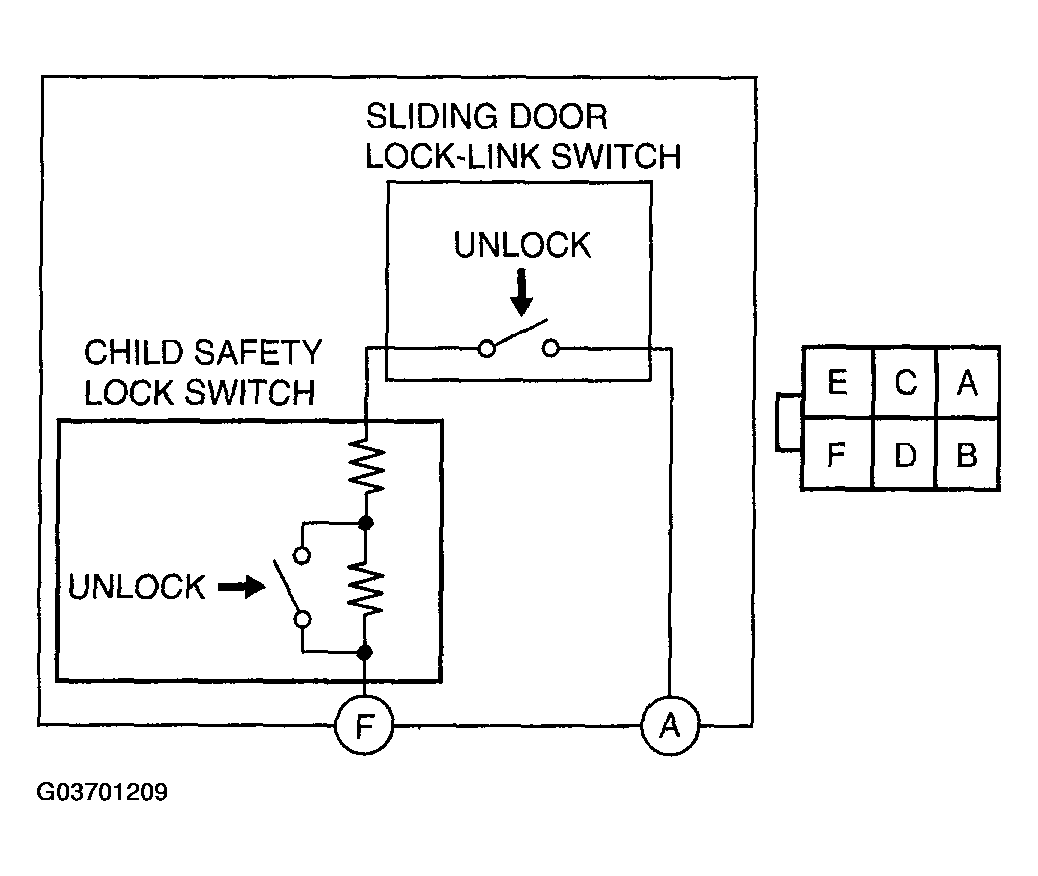

    Fig 2: Inspecting Sliding Door Lock-Link Switch Continuity (With PSD)
    G03701209Courtesy of MAZDA MOTORS CORP.
