Fuse Block Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the driver-side front side trim. (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.

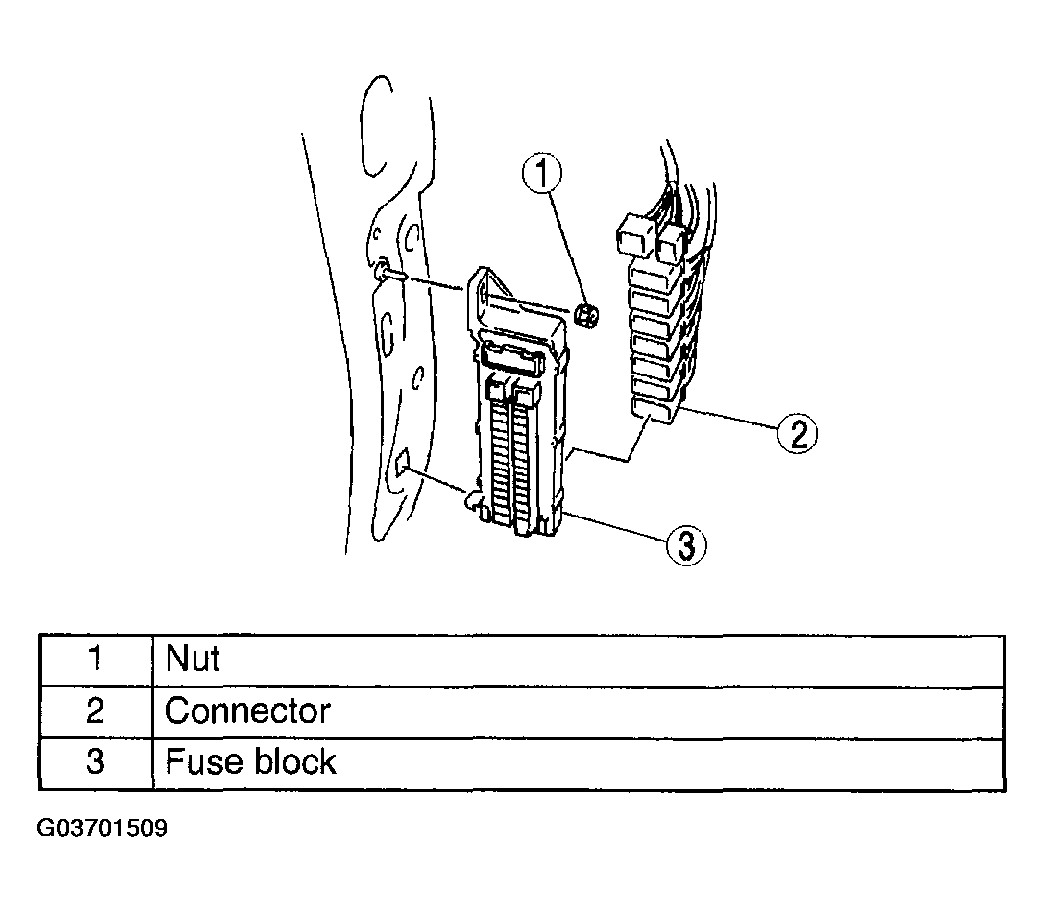

    Fig 1: Removing Fuse Block
    G03701509Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
