Ignition Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the column cover.
  3. Remove in the order indicated in the table.

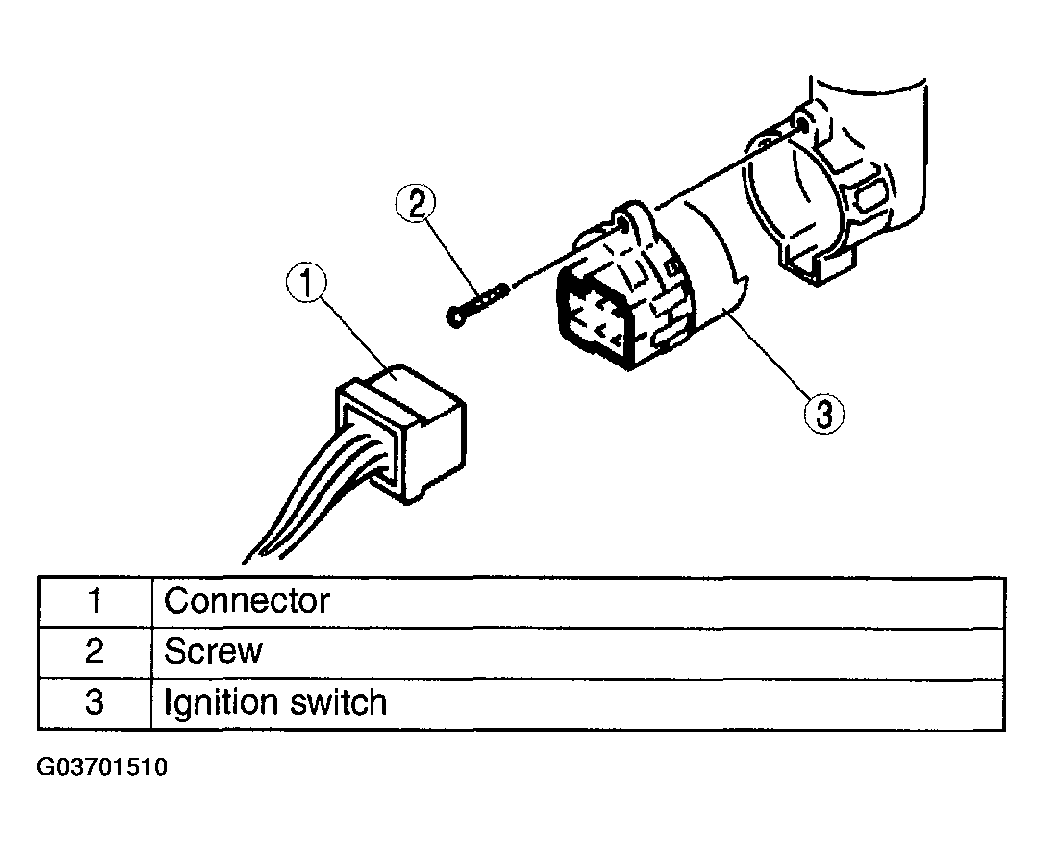

    Fig 1: Removing Ignition Switch
    G03701510Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
