Main Fuse Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the main fuse block cover.
  3. Remove in the order indicated in the table.

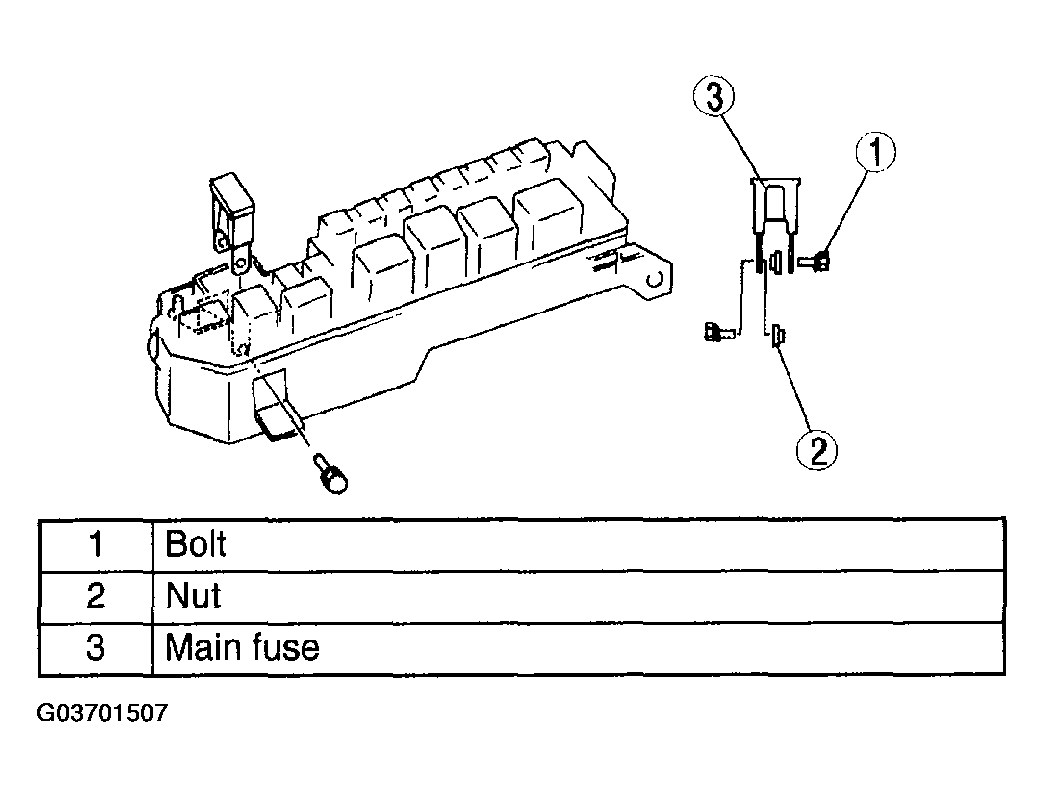

    Fig 1: Removing Main Fuse
    G03701507Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
