Repair and Diagnosis
›
Body & Frame
›
Ignition Switch/Steering Lock
›
Power Systems
›
Relay Location
Relay Location

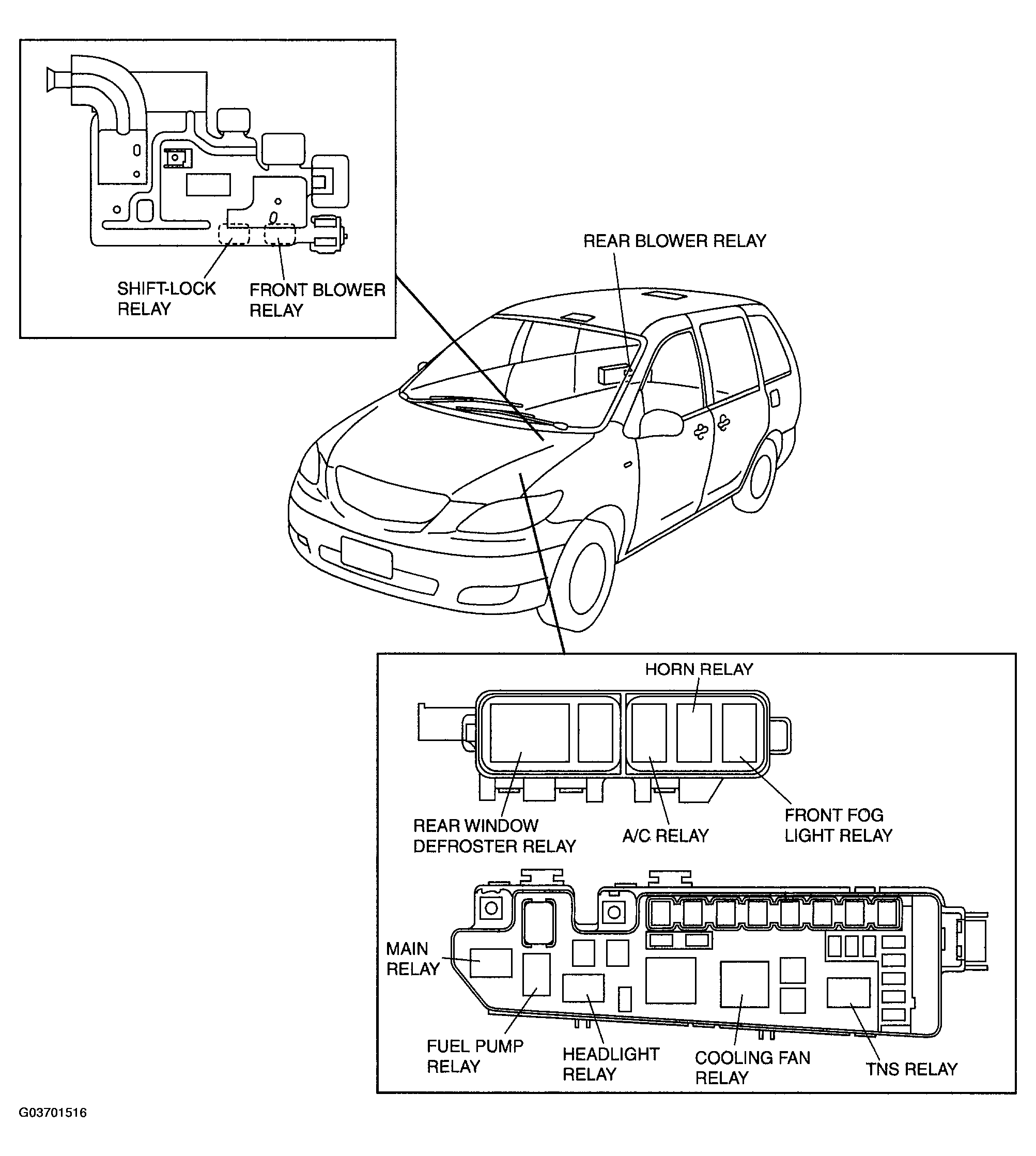

Fig 1: Locating Relay Components
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
