Deflector Removal/Installation

  1. Remove the screws.
  2. Slide the deflector to disengage it from the tabs.
  3. Remove the deflector.

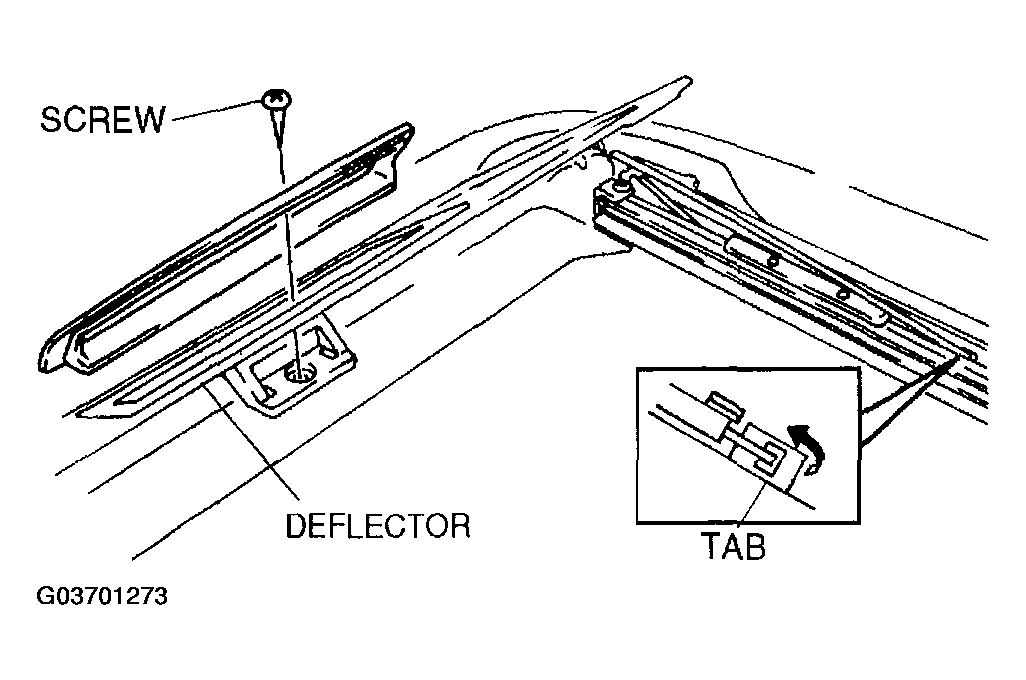

    Fig 1: Removing Deflector
    G03701273Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
