Power Window Motor Assembly Note

NOTE:
  • The cable must be held to install the drum; install with another person.
  1. Press the cable as shown to remove any slack.(1)

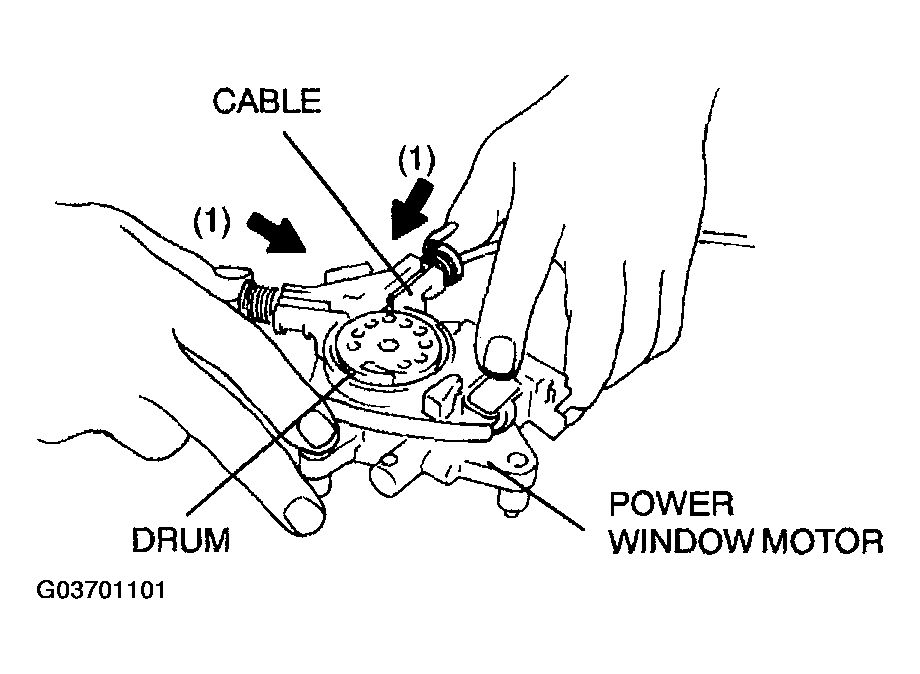

    Fig 1: Pressing Cable
    G03701101Courtesy of MAZDA MOTORS CORP.
  2. Install the drum to the power window motor.
