Engine speed

ABS HU/CM terminal: S ( + ) - AA ( - )
Oscilloscope setting: 2 V/DIV (Y), 25 ms/DIV (X)
Vehicle condition: Idle after warm-up (Engine speed at approximately 650 RPM)

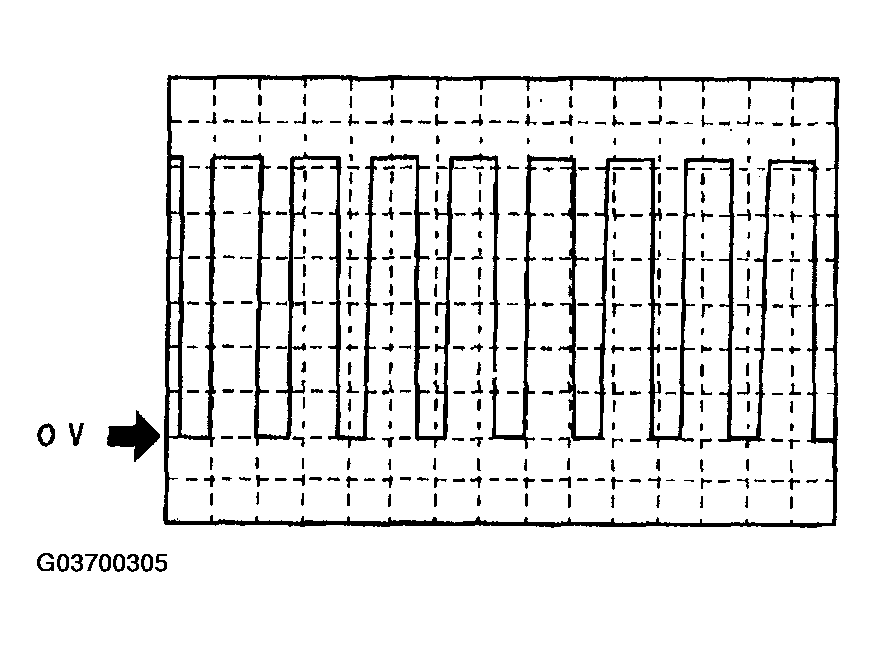

Fig 1: Engine Speed Oscilloscope Graph
Courtesy of MAZDA MOTORS CORP.
