Rear Abs Wheel-Speed Sensor Removal/Installation

Remove the rear side trim. (See REAR SIDE TRIM REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Install in the reverse order of removal.

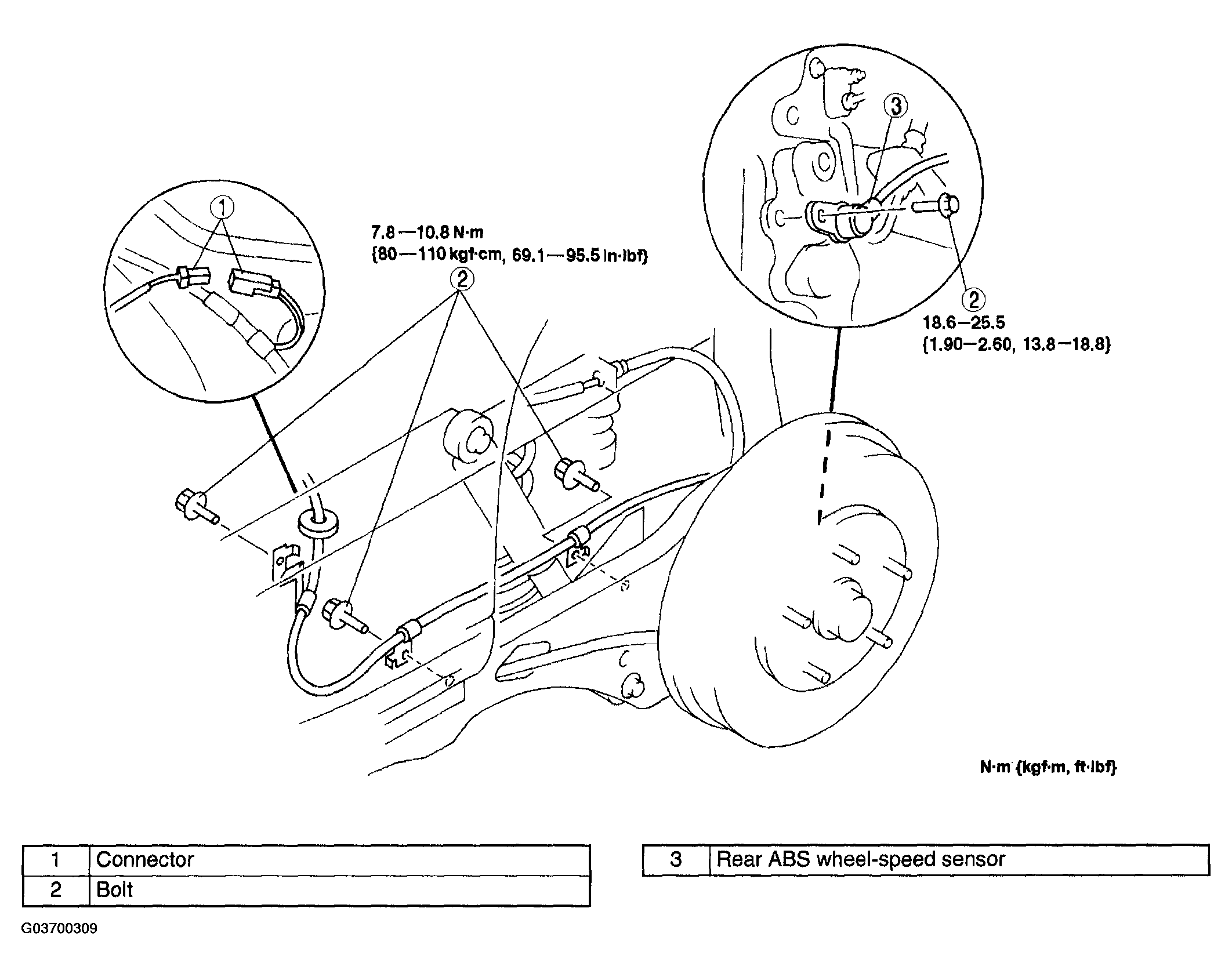

Fig 1: Removing Rear ABS Wheel-Speed Sensor - With Torque Specification
Courtesy of MAZDA MOTORS CORP.
