Immobilizer Unit Connector End View
Immobilizer Unit Connector End View

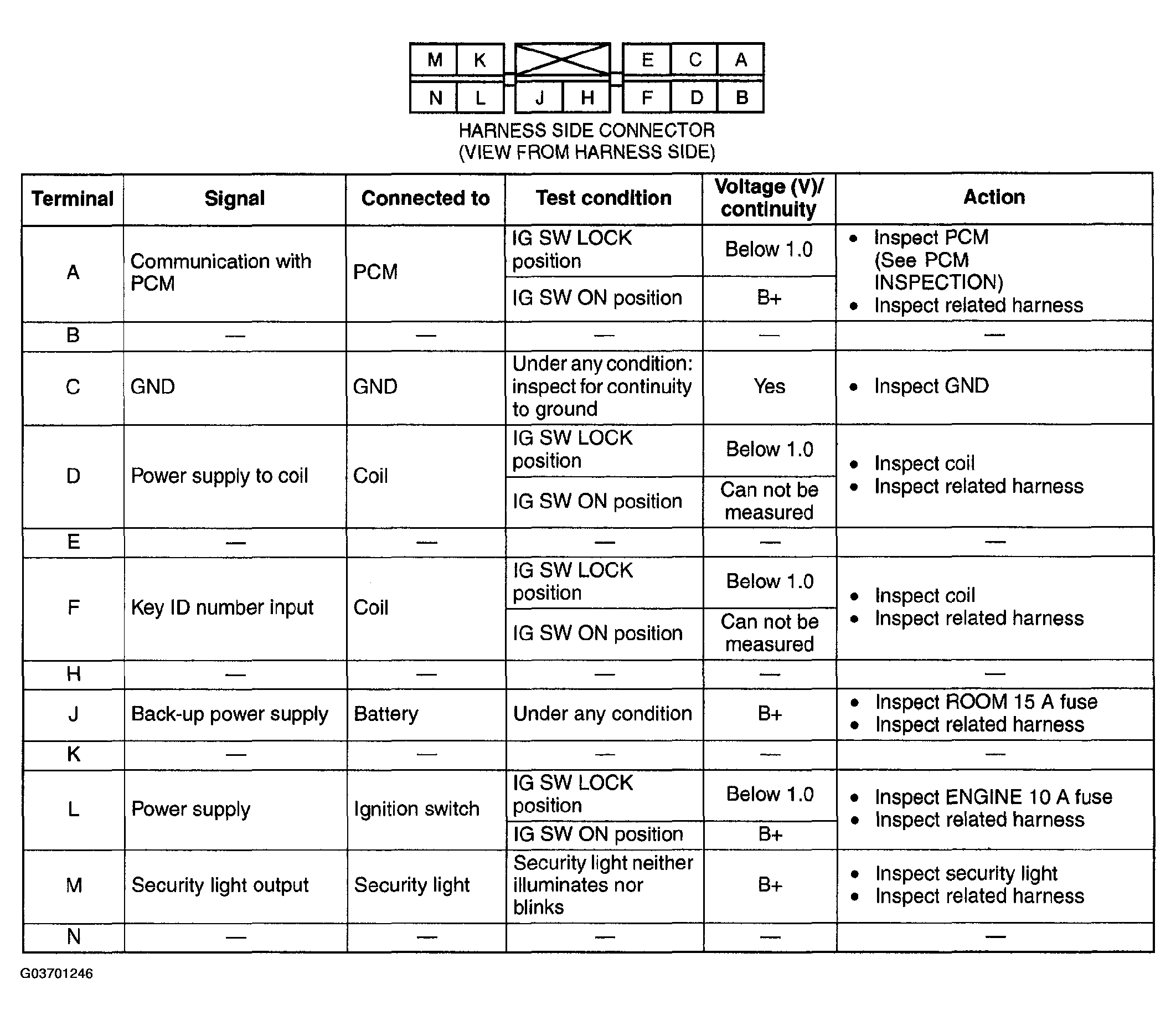

Fig 1: Immobilizer Unit Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
