Instrument Cluster Connector End View
Instrument Cluster Connector End View

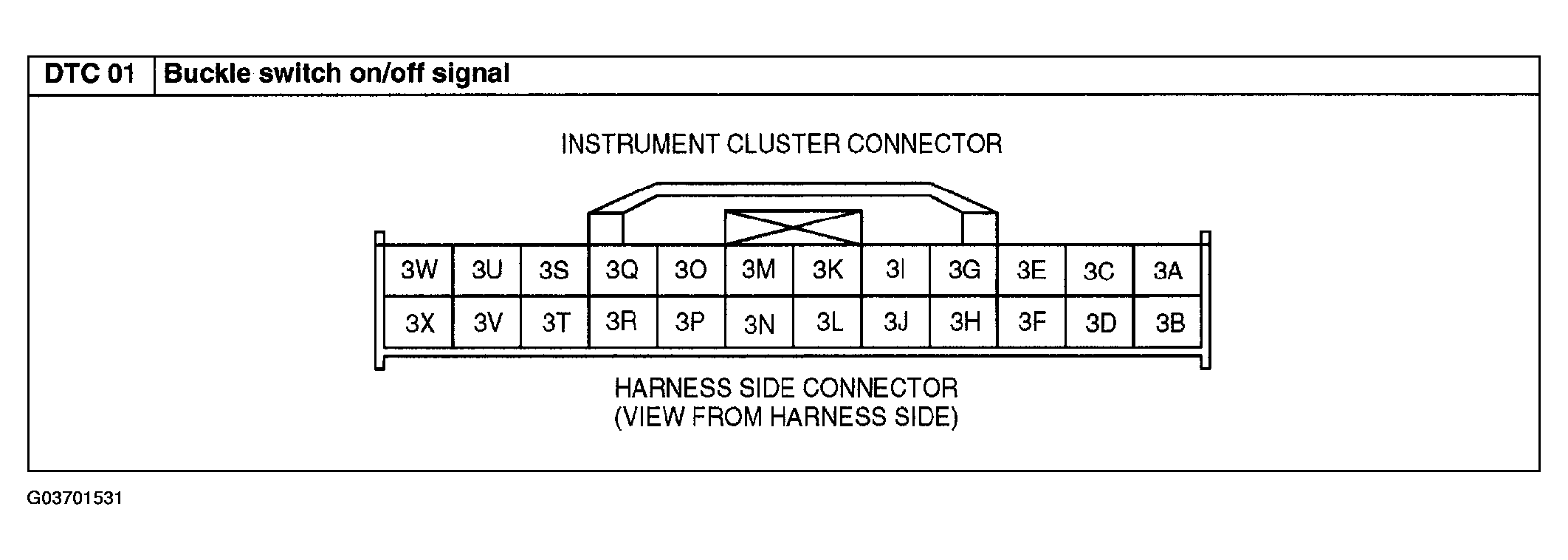

Fig 1: Instrument Cluster Connector End View
Courtesy of MAZDA MOTORS CORP.

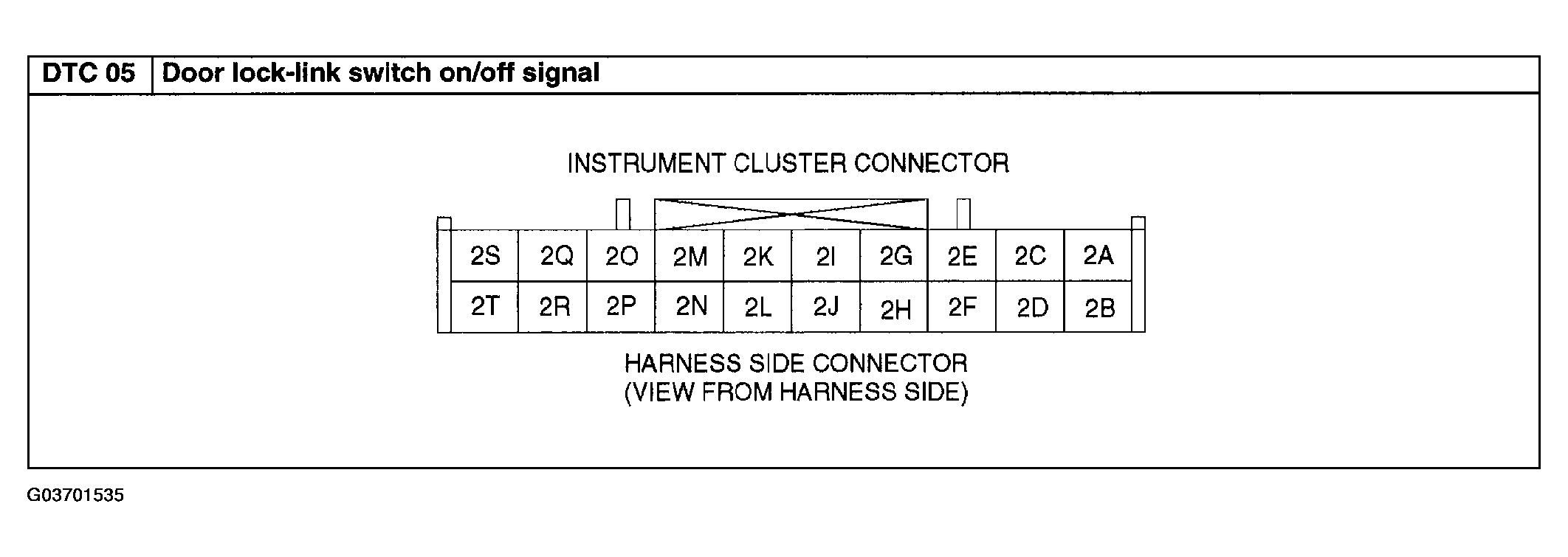

Fig 1: Instrument Cluster Connector End View
Courtesy of MAZDA MOTORS CORP.

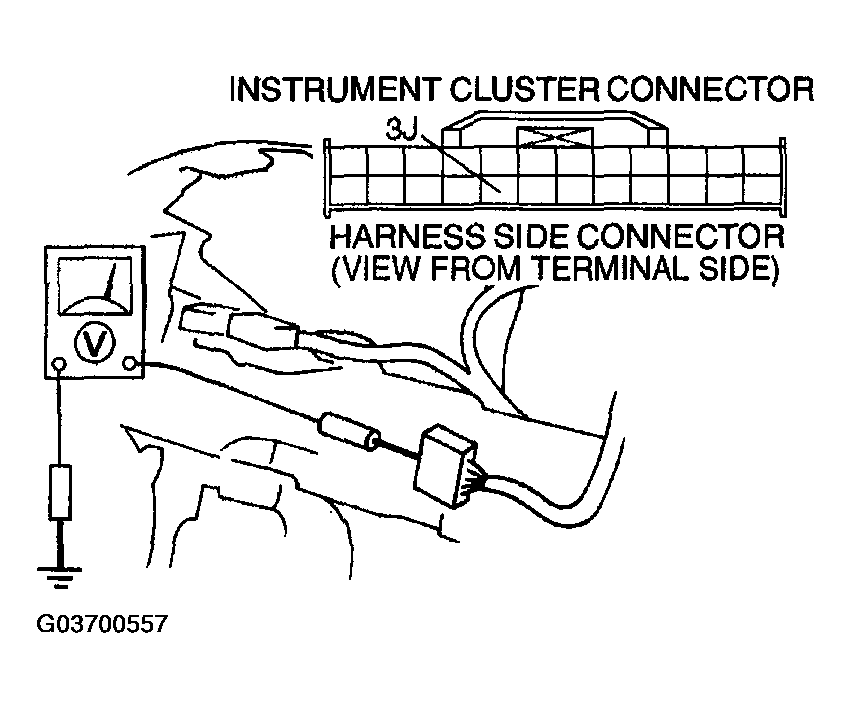

Fig 1: Instrument Cluster Connector End View
Courtesy of MAZDA MOTORS CORP.

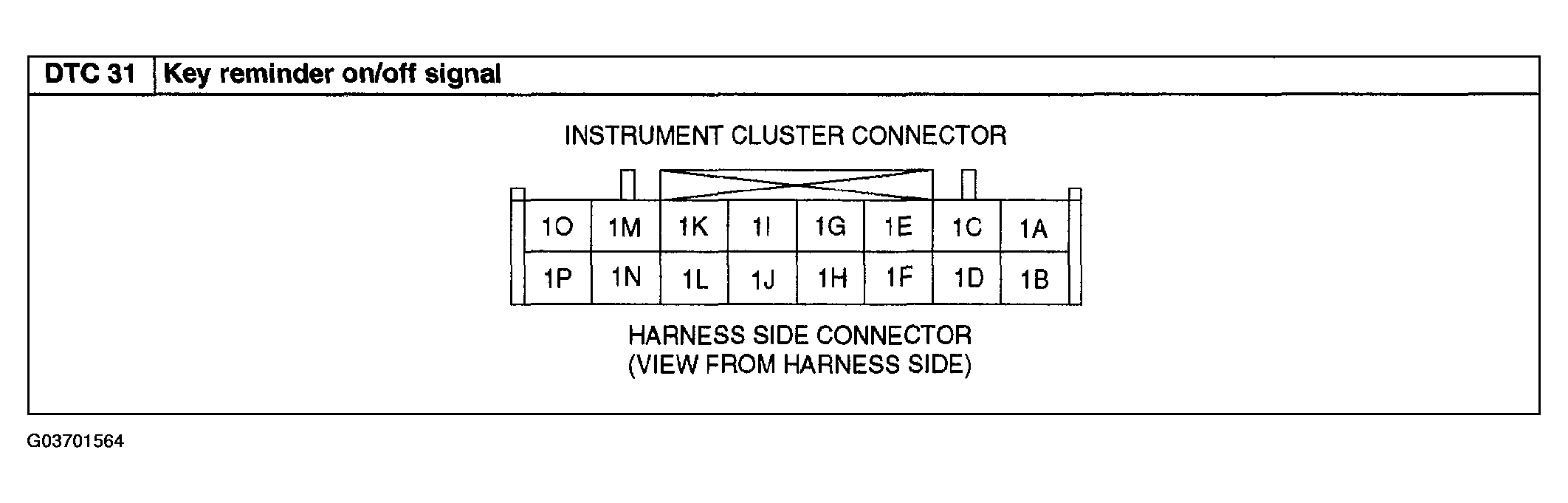

Fig 1: Instrument Cluster Connector End View
Courtesy of MAZDA MOTORS CORP.

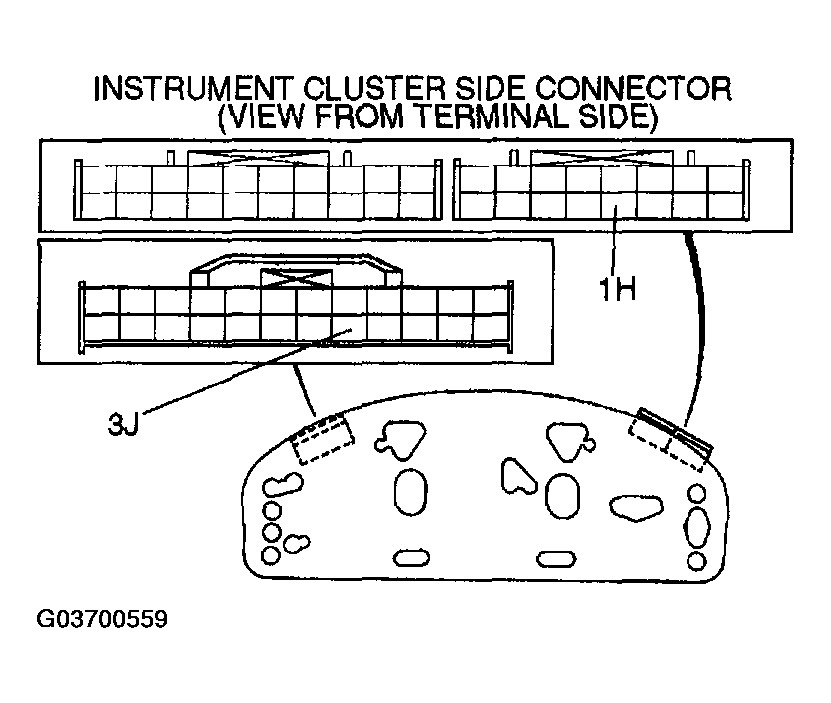

Fig 1: Instrument Cluster Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
