Panel Light Control Switch Connector End View
Panel Light Control Switch Connector End View

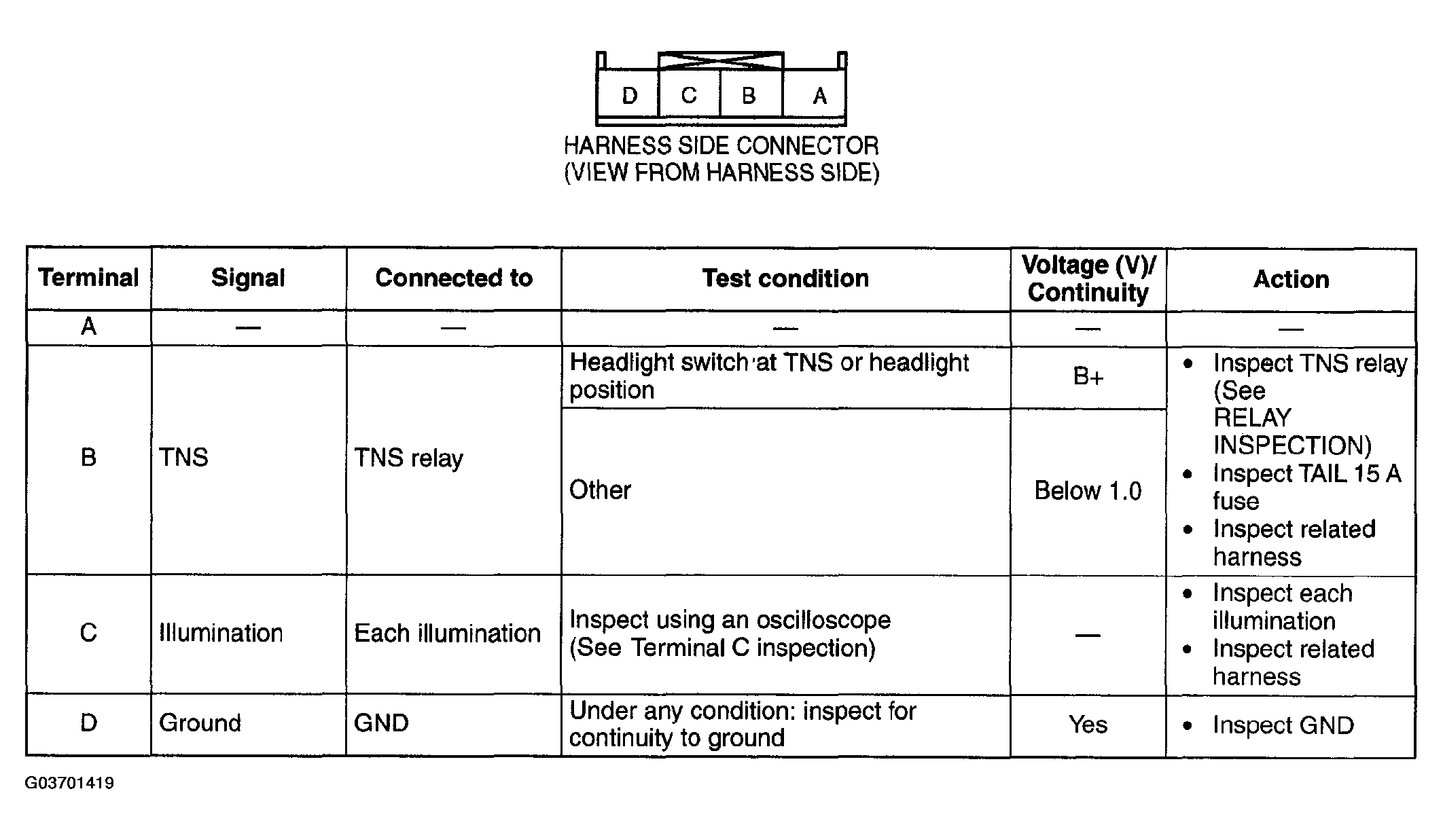

Fig 1: Panel Light Control Switch Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
