Theft-Deterrent Control Module Connector End View
Theft-Deterrent Control Module Connector End View

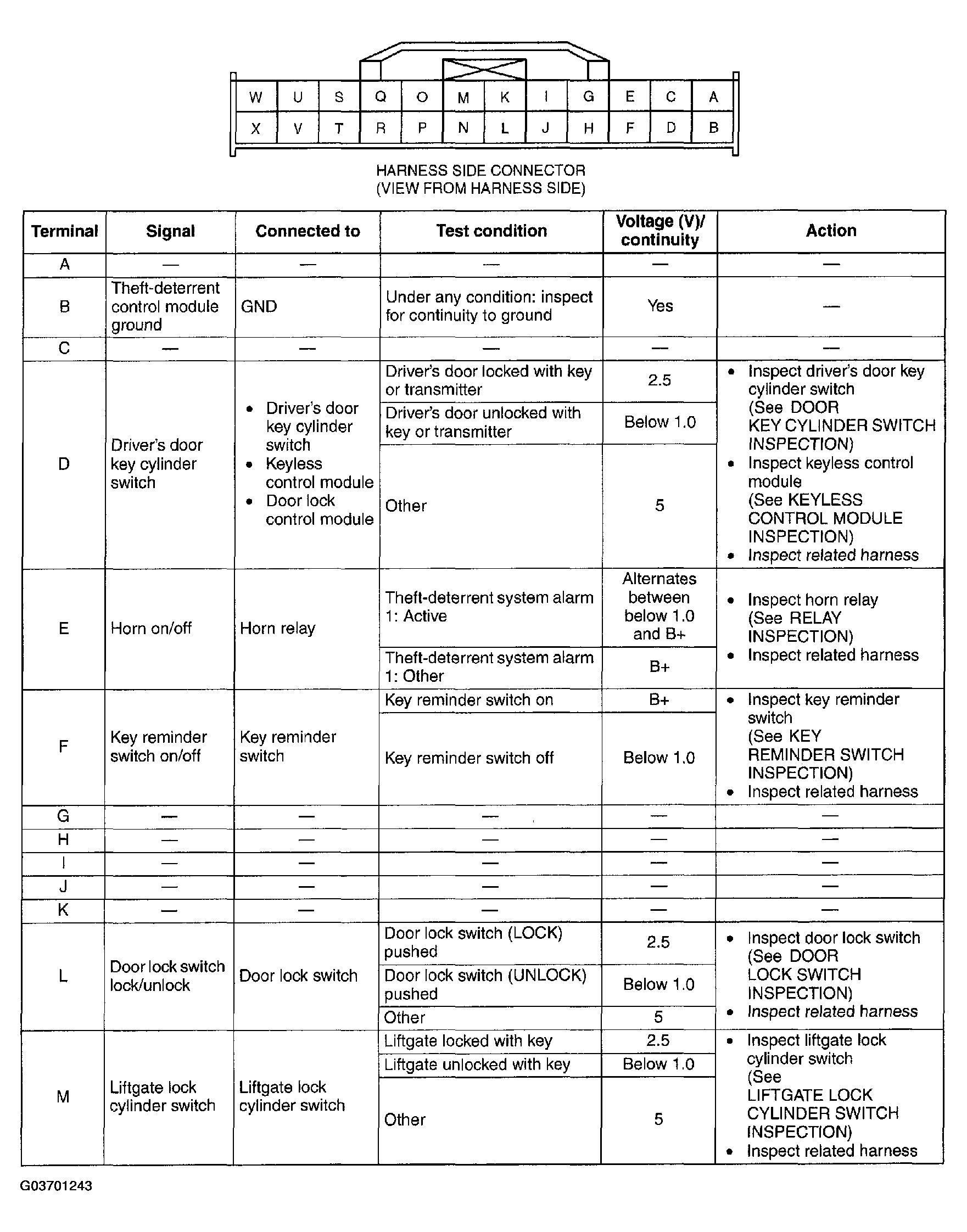

Fig 1: Theft-Deterrent Control Module Connector End View Voltage
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
