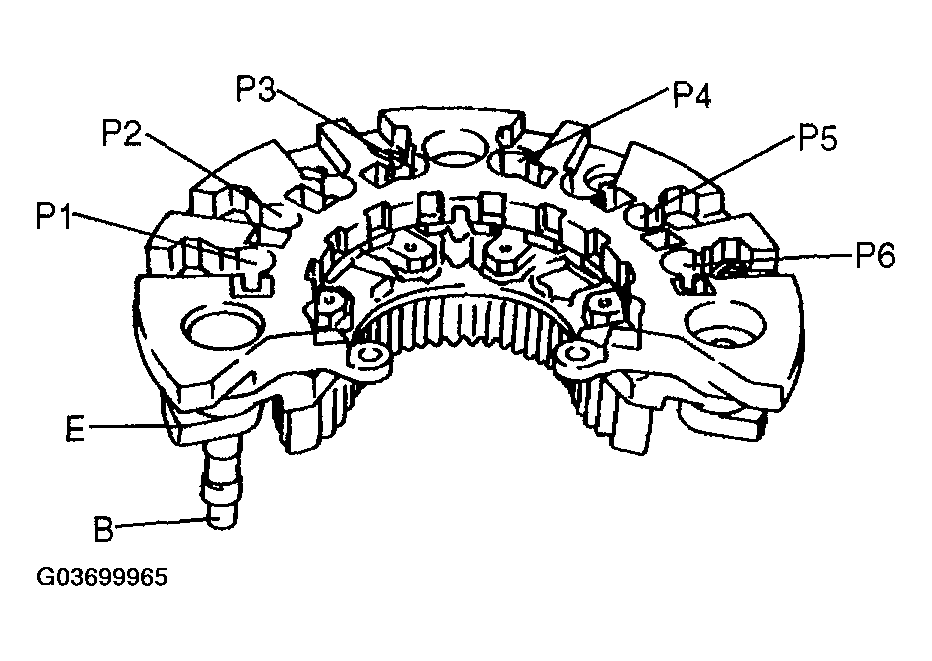

Generator Inner Parts: Rectifier
- Inspect for continuity of the diodes using an ohmmeter.
- If not as specified, replace the rectifier.
Specification
TERMINAL SPECIFICATION
| Negative |
Positive |
Continuity |
| E |
P1, P2, P3, P4, P5, P6 |
Yes |
| B |
No |
| P1, P2, P3, P4, P5, P6 |
E |
No |
| B |
Yes |
Courtesy of MAZDA MOTORS CORP.
