Main Fuse & Relay Box

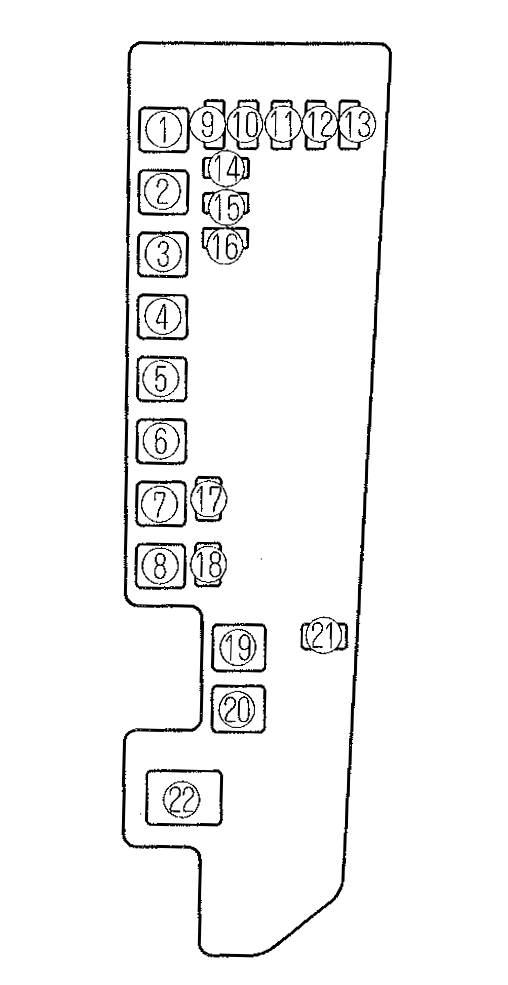

Main fuse and relay box is located on driver's side of engine compartment. See Fig 1.
IDENTIFYING FUSES (ENGINE COMPARTMENT)
| DESCRIPTION | FUSE RATING | CIRCUIT PROTECTED | |
|---|---|---|---|
| 1 | DEFOG | 40A | Rear Window Defroster |
| 2 | BTN | 60A | Door Locks & DRL Fuses Hazard Room Stop |
| 3 | ABS | 60A | ABS For Protection Of Various Circuits |
| 4 | FAN1 | 30A | Cooling Fan |
| 5 | FAN2 | 30A | Cooling Fan |
| 6 | HEATER | 40A | Heater |
| 7 | R.HEATER | 30A | Rear Heater * For Protection Of Various Circuits |
| 8 | IG KEY 2 | 40A | Air Conditioner For Protection Of Various Circuits |
| 9 | A/C | 10A | Air Conditioner Moonroof * & R.WIP fuses P.WIND * For Protection Of Various Circuits |
| 10 | TAIL | 15A | Tail Lights |
| 11 | AC PWR | 15A | Inverter |
| 12 | HORN | 15A | Horn |
| 13 | FOG | 15A | For Protection Of Various Circuits |
| 14 | EEC | 5A | For Protection Of Various Circuits |
| 15 | HEAD L | 15A | Head Lights (LH) |
| 16 | HEAD R | 15A | Head Lights (RH) |
| 17 | HID L | 20A | - |
| 18 | HID R | 20A | - |
| 19 | IG KEY1 | 60A | Meter Engine & Wiper fuses |
| 20 | IGI INJ | 30A | For Protection Of Various Circuits |
| 21 | FUEL PUMP | 20A | Fuel Pump |
| 22 | MAIN | 120a | For Protection Of All Circuits |
| * Some models | |||
