Instrument Cluster Input/Output Check Mode
›
Operating Order
Operating Order

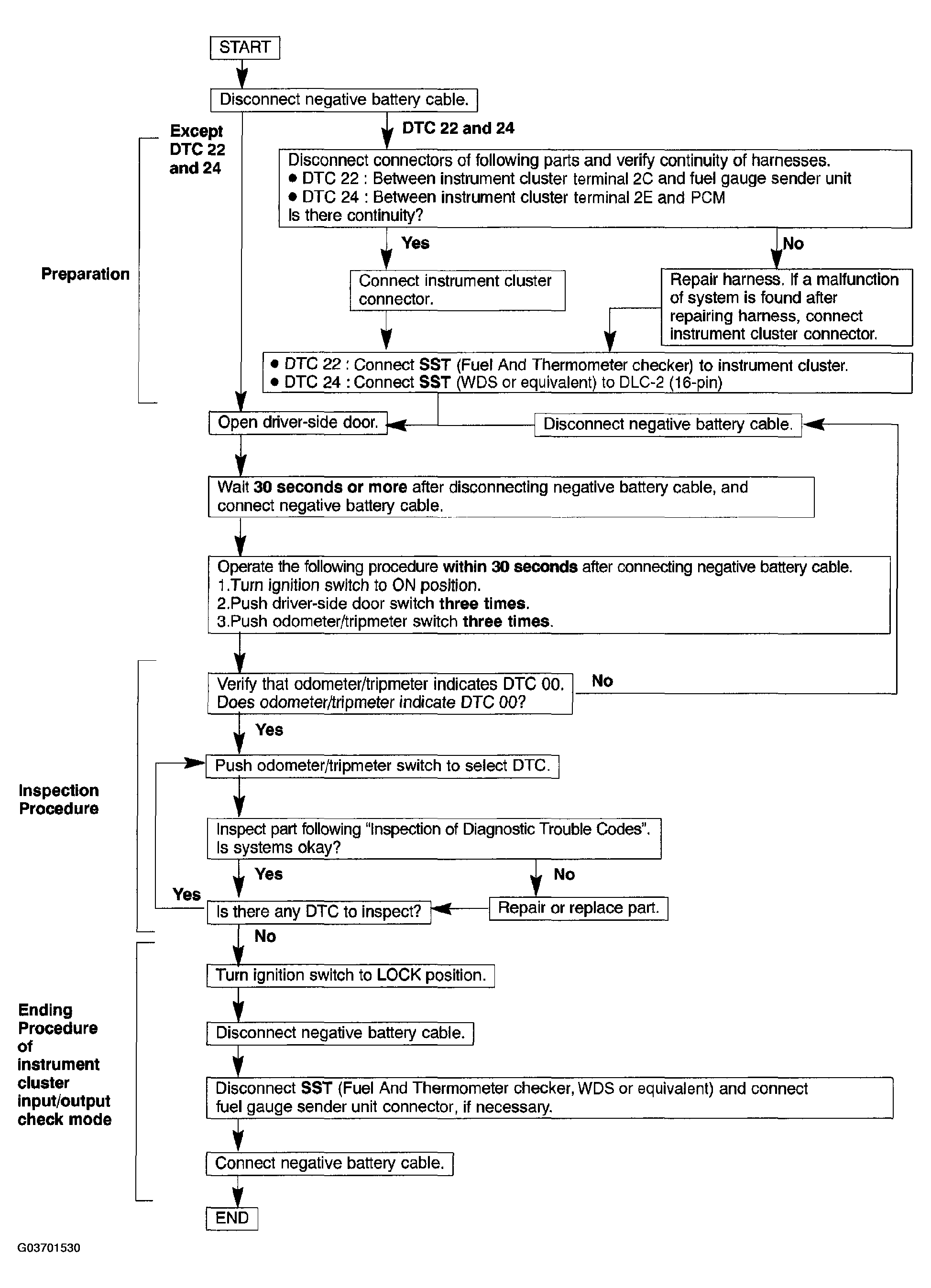

Fig 1: Identifying Instrument Cluster Operating Order
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
