EGR Valve Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the air cleaner.
  3. Disconnect the vacuum hose.
  4. Disconnect the EGR pipe.
  5. Remove in the order indicated in the table.

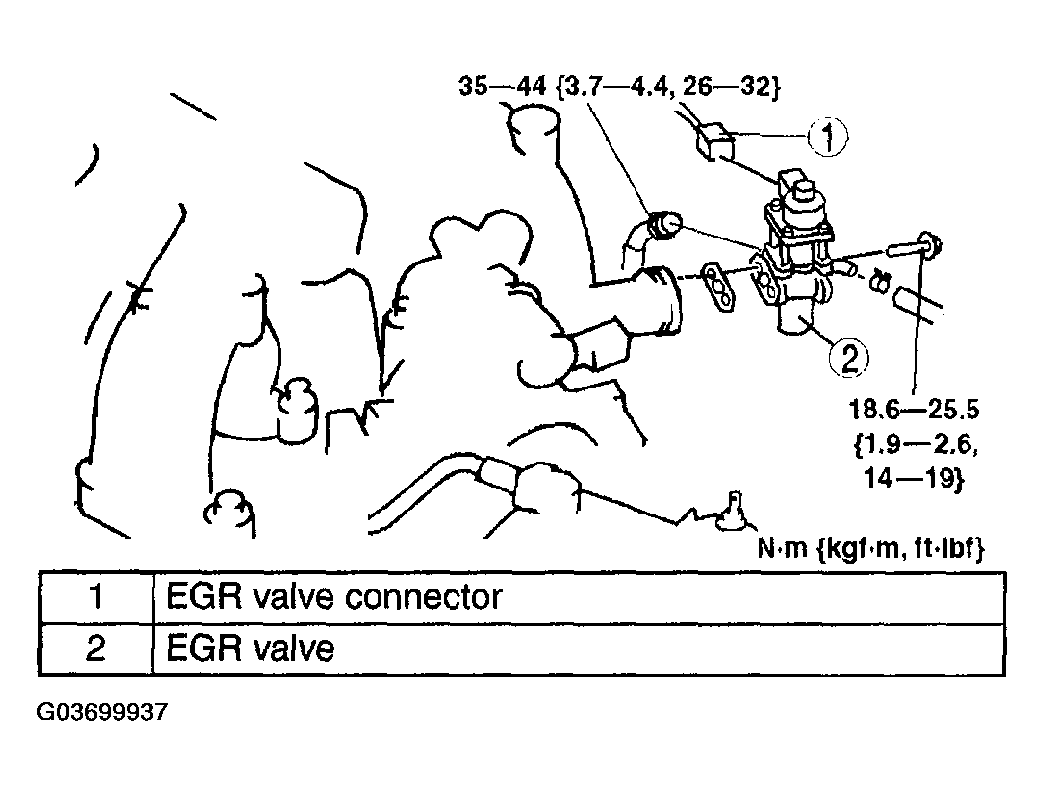

    Fig 1: Removing EGR Valve Components In Order
    G03699937Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
