Exhaust Manifold (RH) Installation Note

  1. Tighten the exhaust manifold installation nuts in the order shown.

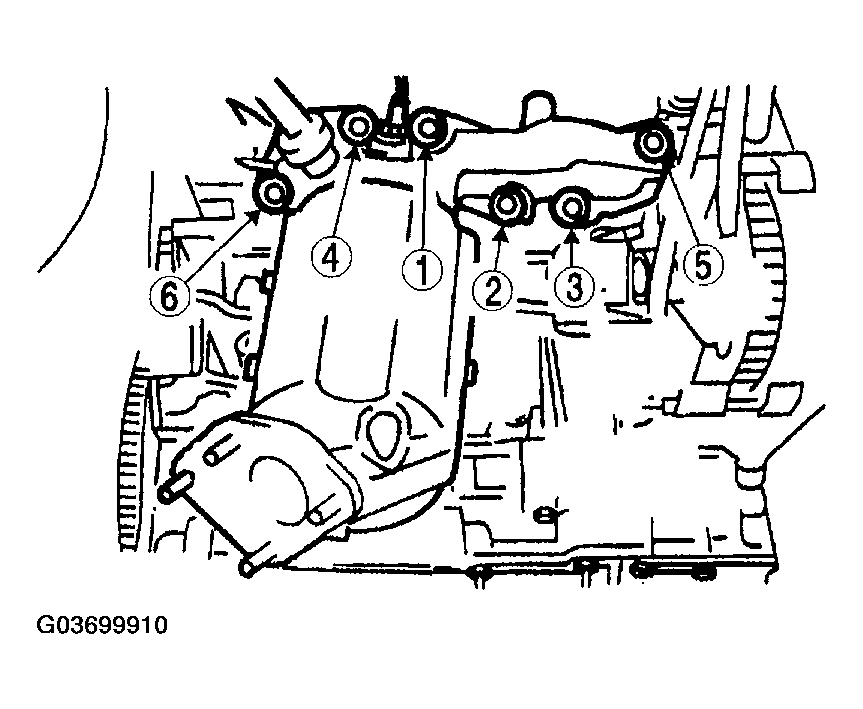

    Fig 1: Tightening Exhaust Manifold (RH) Nuts In Order
    G03699910Courtesy of MAZDA MOTORS CORP.
