Control System Diagram
›
Without Rear HO2S Model
Without Rear HO2S Model

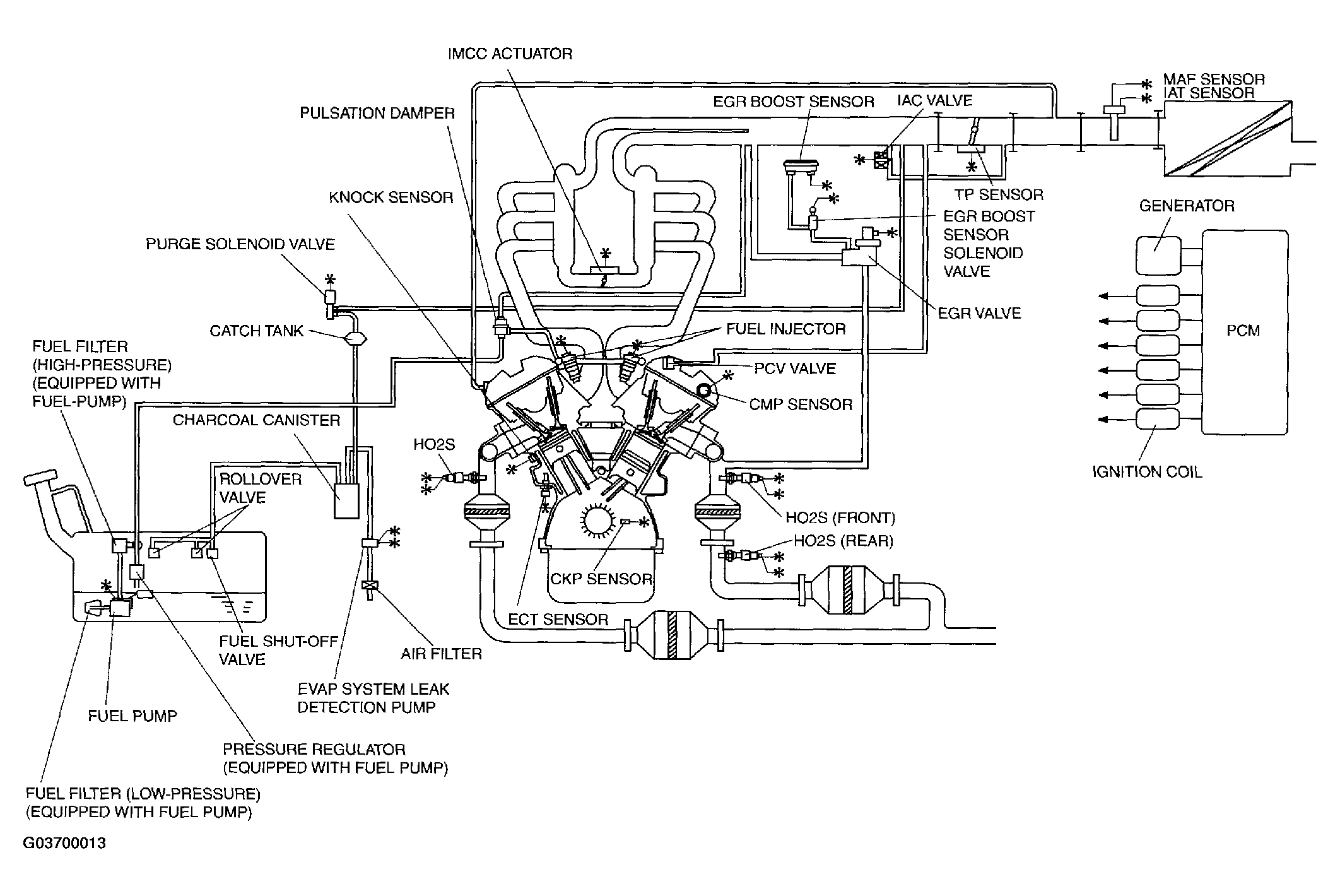

Fig 1: Identifying Control System Diagram (Without Rear HO2S Model)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
