Generator field coil signal

PCM terminal: 36 (+)-100 (-)
Oscilloscope setting: 0.5V/DIV (Y), 1ms/DIV (X), DC range
Vehicle condition: idle after warm up

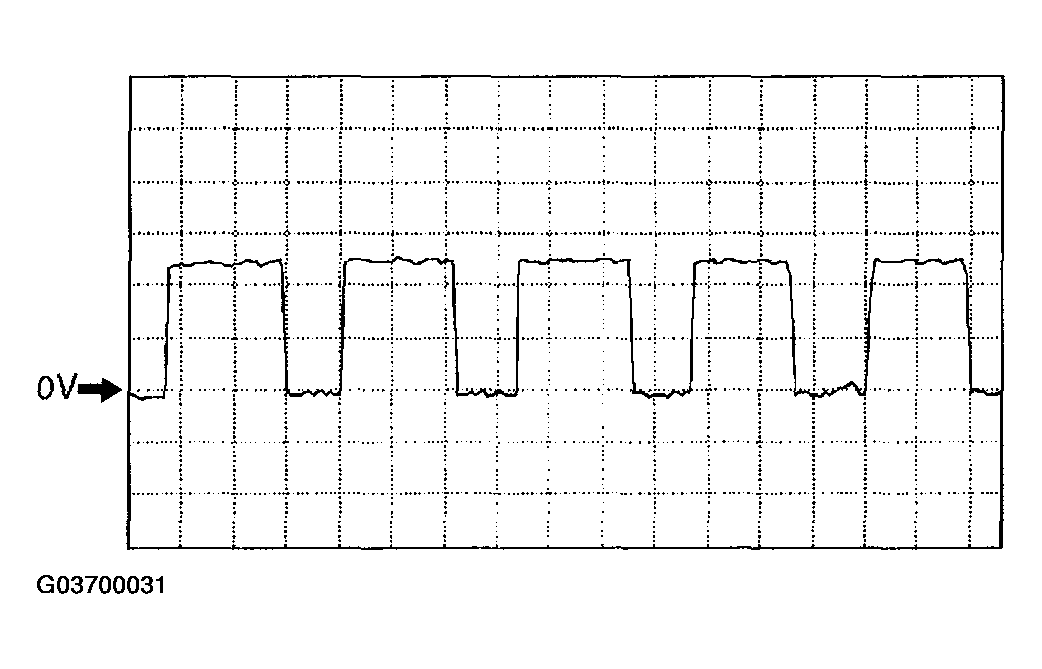

Fig 1: Identifying Oscilloscope Graph Generator Field Coil Signal
Courtesy of MAZDA MOTORS CORP.
