Torque reduction inhibit signal

PCM terminal: 90 (+)-100 (-)
Oscilloscope setting: 1V/DIV(Y), 10ms/DIV(X), DC range
Vehicle condition: idle after, warm up

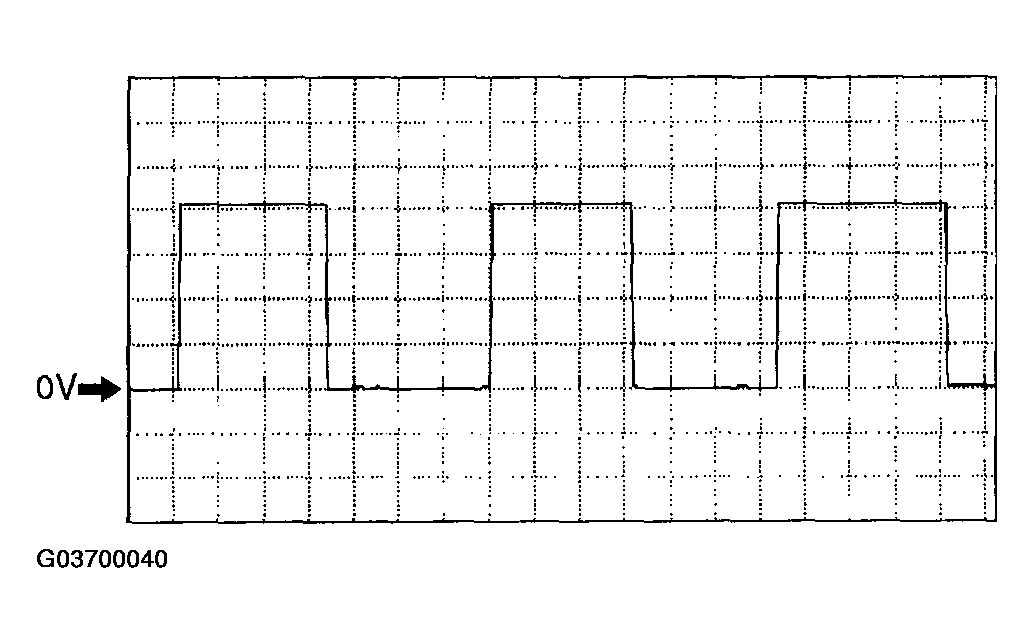

Fig 1: Identifying Oscilloscope Graph Torque Reduction Inhibit Signal
Courtesy of MAZDA MOTORS CORP.
