Joint Hose Installation Note

Fit the joint hose onto the respective fittings, and install clamps as shown.

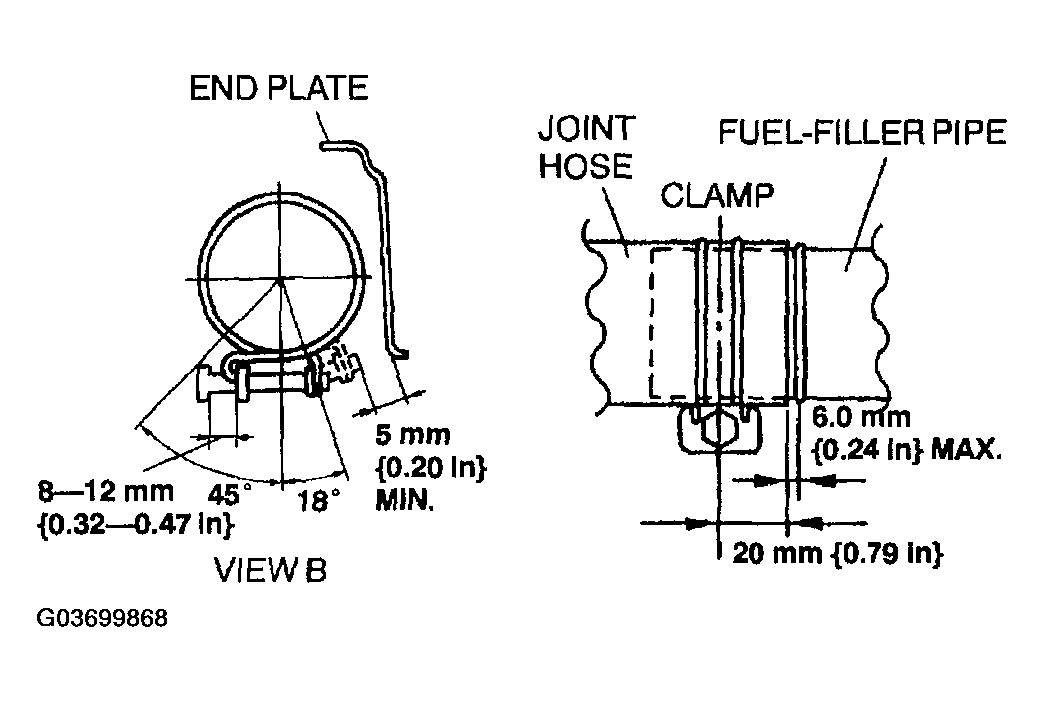

Fig 1: Installing Joint Hose (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

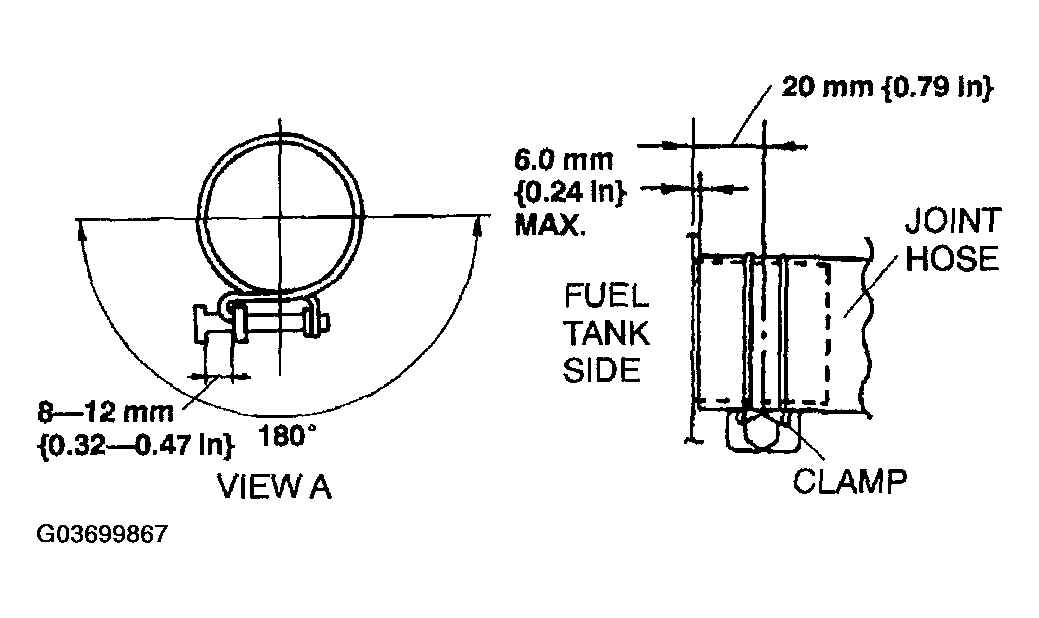

Fig 2: Installing Joint Hose (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
