DTC P0505
›
Notes
DTC P0505: Notes

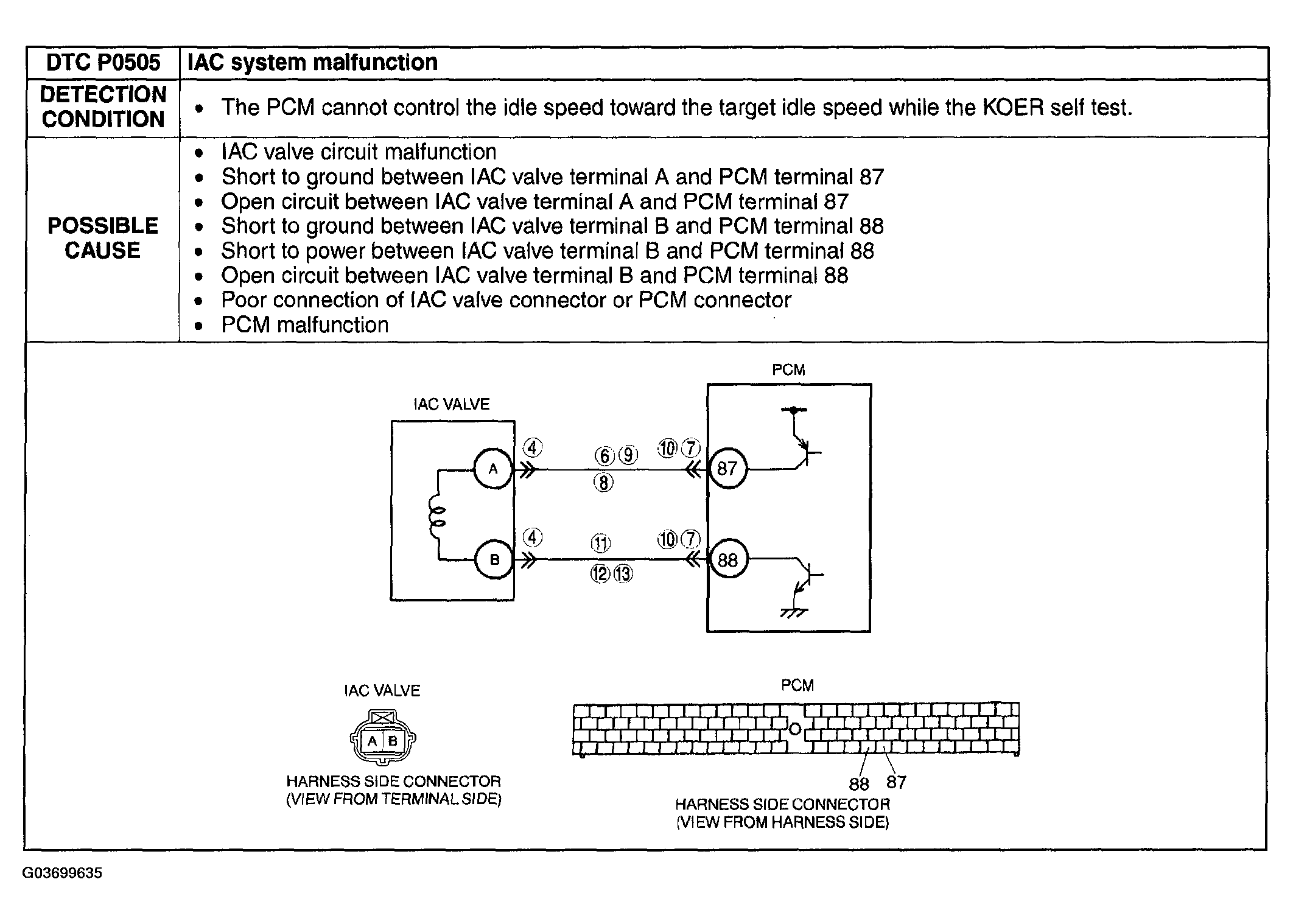

Fig 1: DTC P0505 - Detection Condition And Possible Cause
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
