Symptom Troubleshooting (Engine Control System) AJ
›
No.1 Melting Of Main Or Other Fuses
No.1 Melting Of Main Or Other Fuses

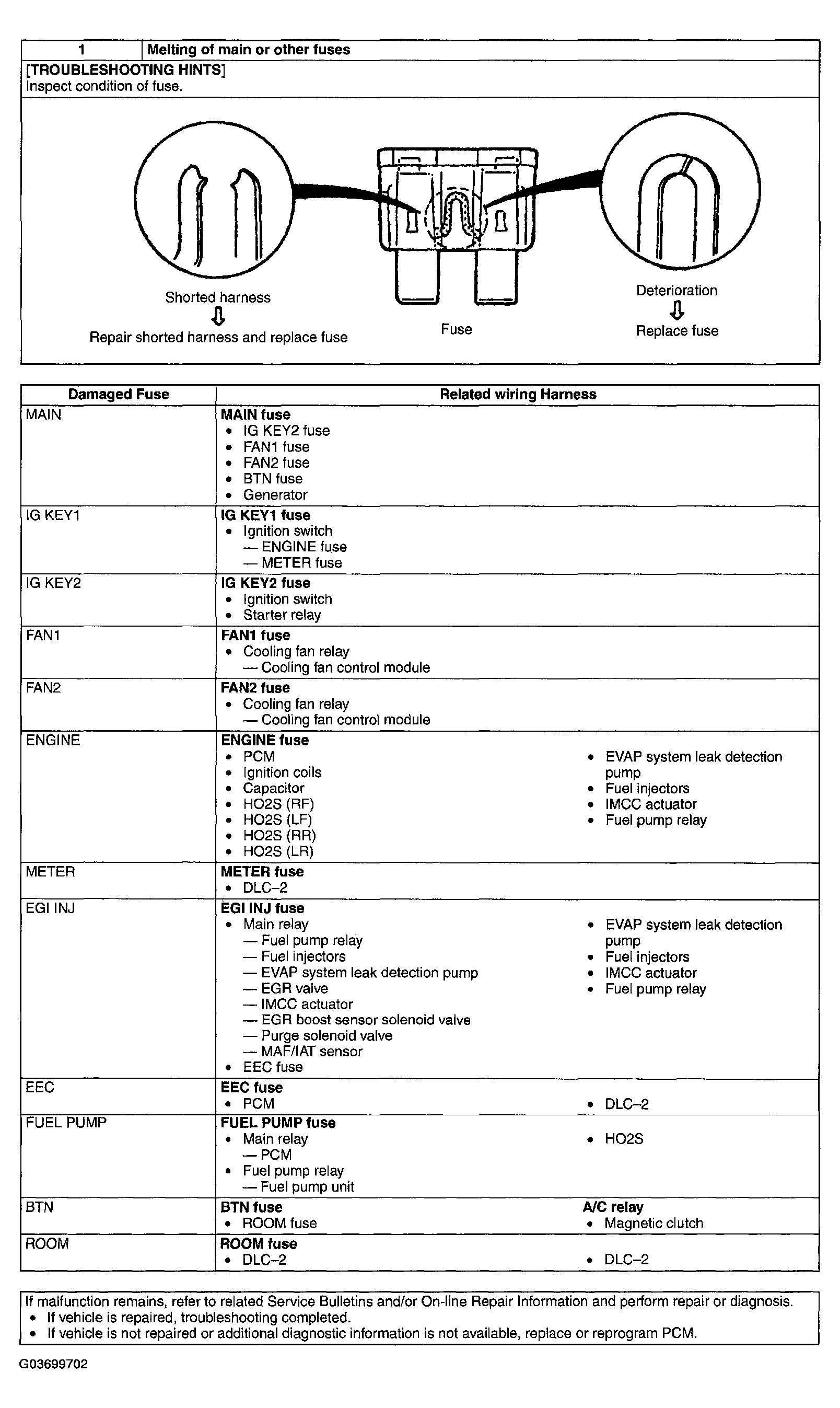

Fig 1: Troubleshooting Melting Fuses
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
