Primary Coil Winding
- Disconnect the ignition coil connector.

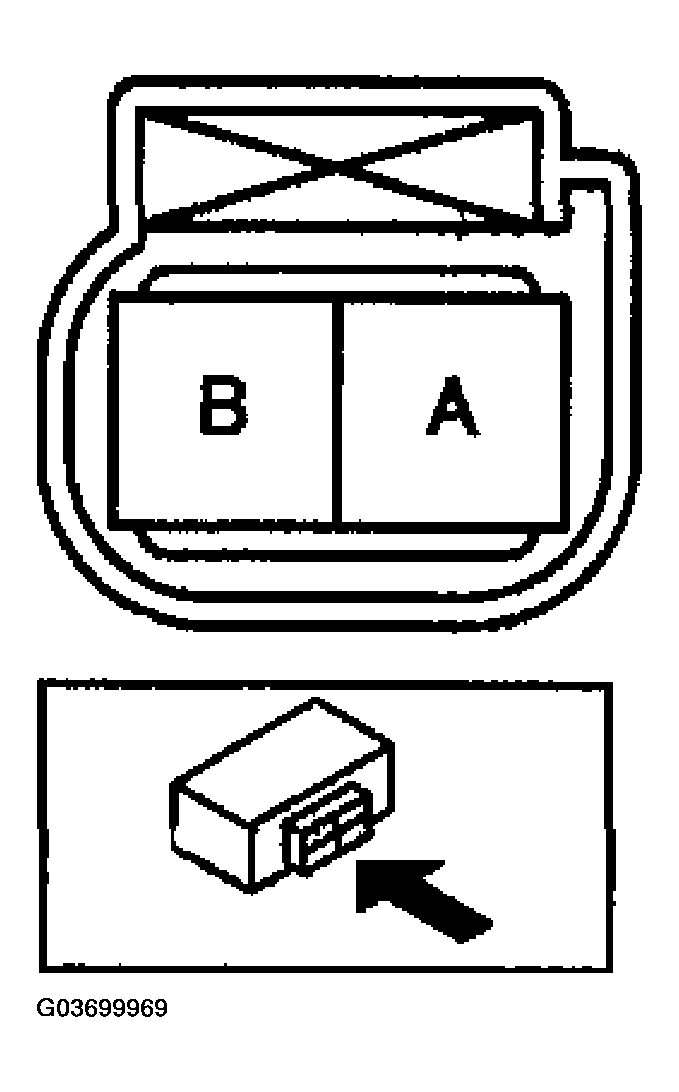

- Measure the resistance between the following terminals using an ohmmeter:
- A and B
- If not as specified, replace the ignition coil.
Resistance (Reference)
- 0.45-1.15 ohms [25 °C {77 °F}]
Courtesy of MAZDA MOTORS CORP.
