Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

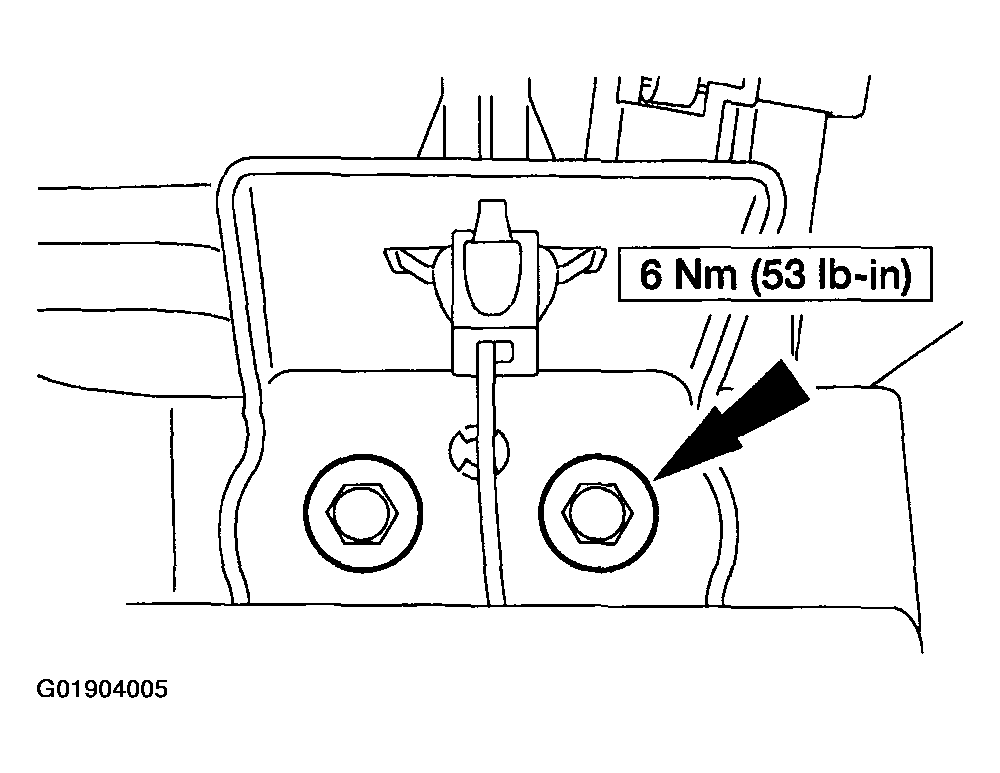

Fig 1: Removing Hood Latch Release Handle Bolts

Courtesy of MAZDA MOTORS CORP.

Remove the hood latch release handle bolts.
Remove the hood latch. For additional information, refer to HOOD LATCH .

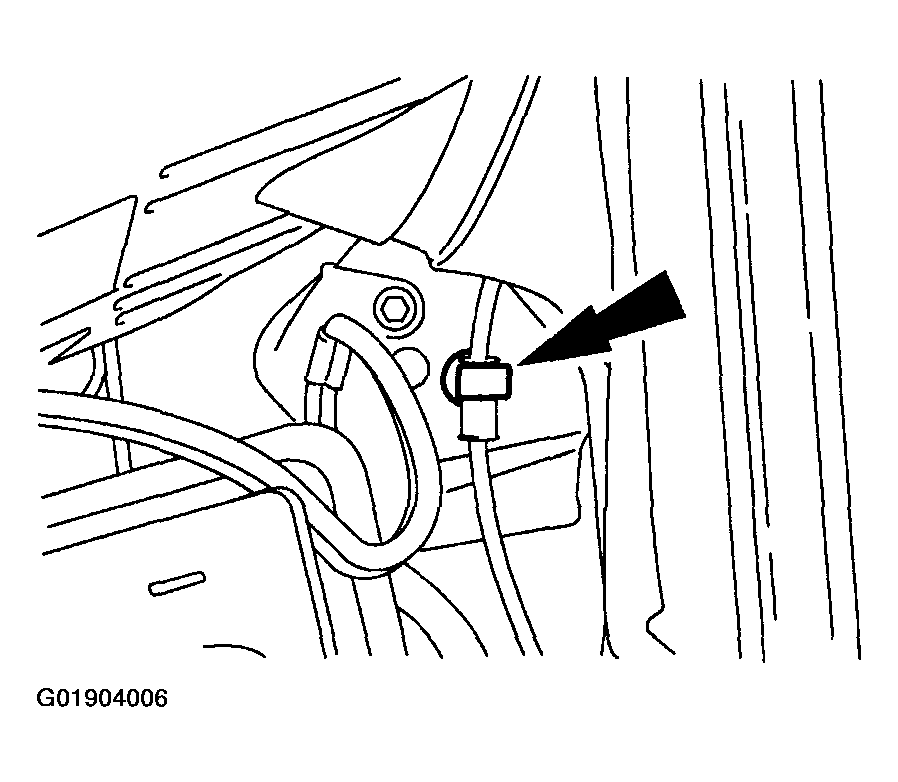

Fig 2: Releasing Handle Cable Locators
Courtesy of MAZDA MOTORS CORP.
Remove the two hood latch release handle cable locators.
NOTE:
- The hood latch release handle cable must be pulled through the dash panel into the passenger compartment.
Remove the hood latch release handle.
To install, reverse the removal procedure.
