Headlight Leveling Actuator Removal Note

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Loosen the adjusting bolt until the headlight leveling actuator can be rotated.
Rotate the headlight leveling actuator to the position shown in the figure.
Loosen the adjusting bolt further and remove the headlight leveling actuator.

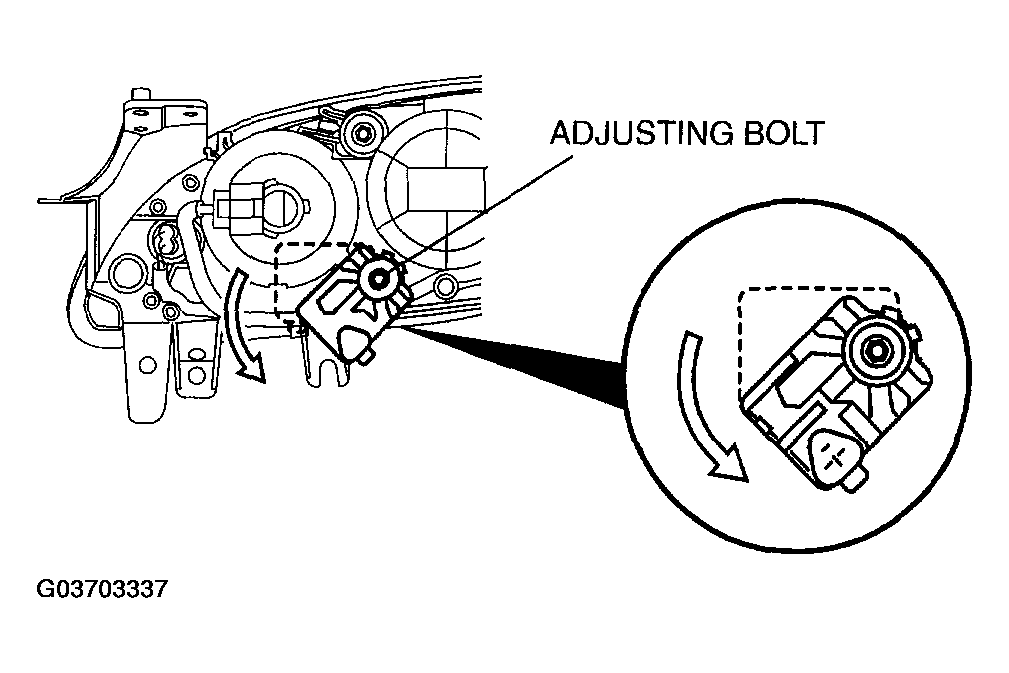

Fig 1: Loosening Adjusting Bolt And Removing Headlight Leveling Actuator
Courtesy of MAZDA MOTORS CORP.
