Data link connector
Data link connector
Insert the probe into the terminal when connecting a jumper wire to the data link connector.
CAUTION:
Inserting a jumper wire probe into the data link connector terminal may damage the terminal.

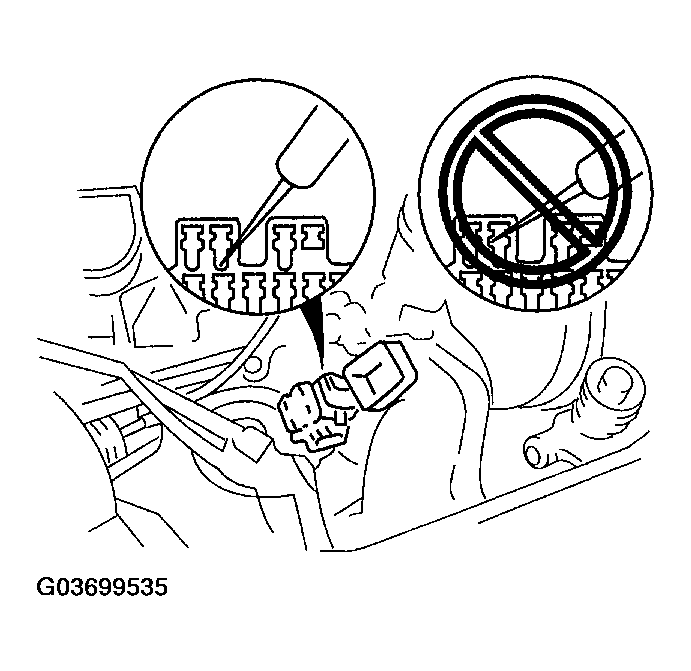

Fig 1: Precaution For Inserting Probe
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
