Electrical System: Connectors: Inspection

When a tester is used to inspect for continuity or measuring voltage, insert the tester probe from the wiring harness side.

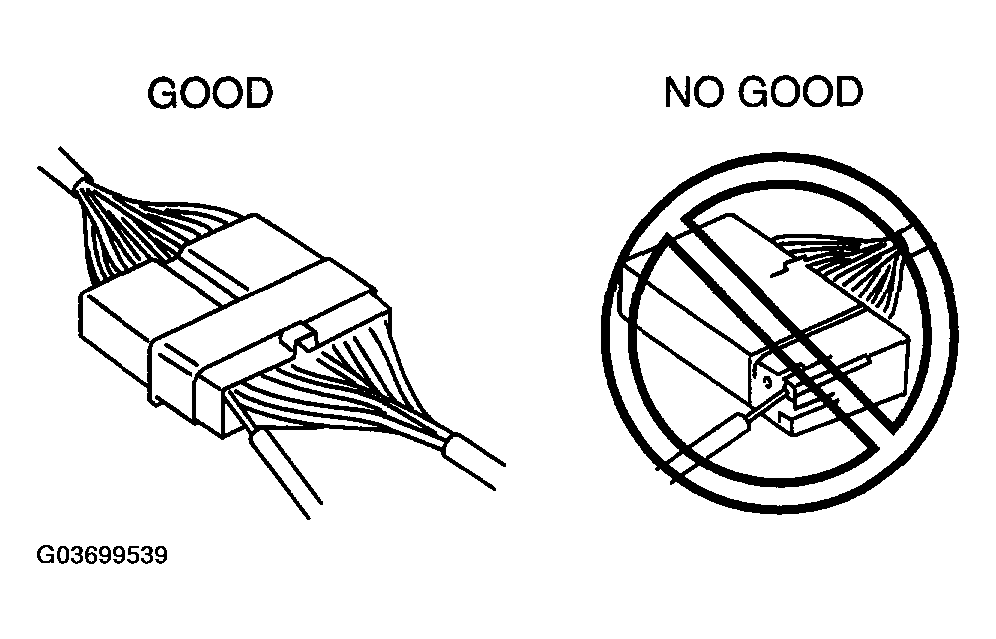

Fig 1: Precaution For Inserting Tester Probe
Courtesy of MAZDA MOTORS CORP.
Inspect the terminals of waterproof connectors from the connector side since they cannot be accessed from the wiring harness side.
CAUTION:
- To prevent damage to the terminal, wrap a thin wire around the lead before inserting into terminal.

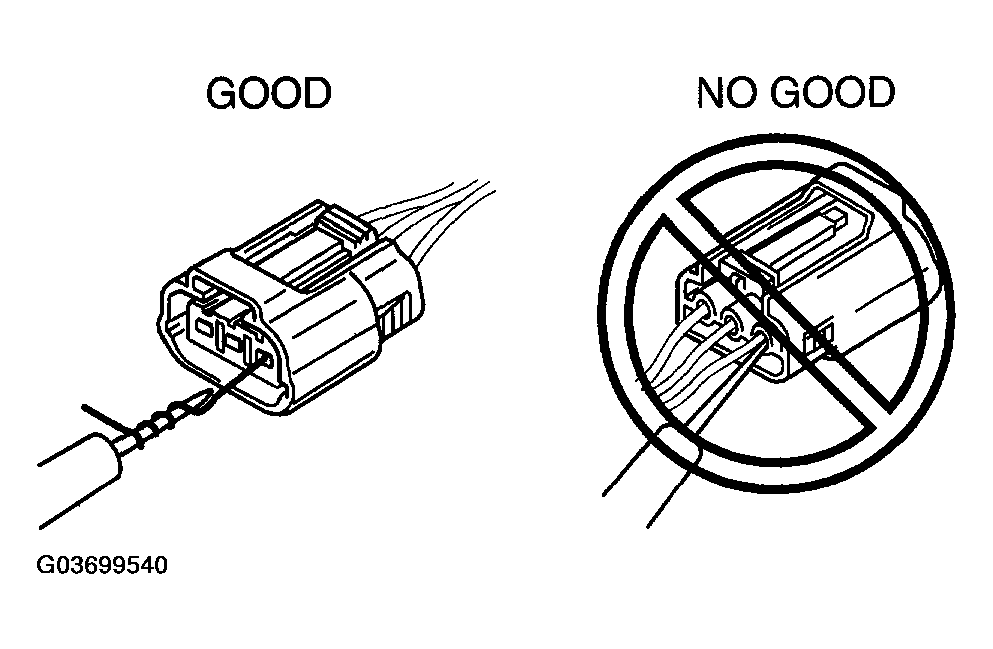

Fig 2: Precaution For Inspection Of Terminals Of Waterproof Connectors
Courtesy of MAZDA MOTORS CORP.
