Automatic Transaxle Control System Wiring Diagram

See TRANSMISSION .

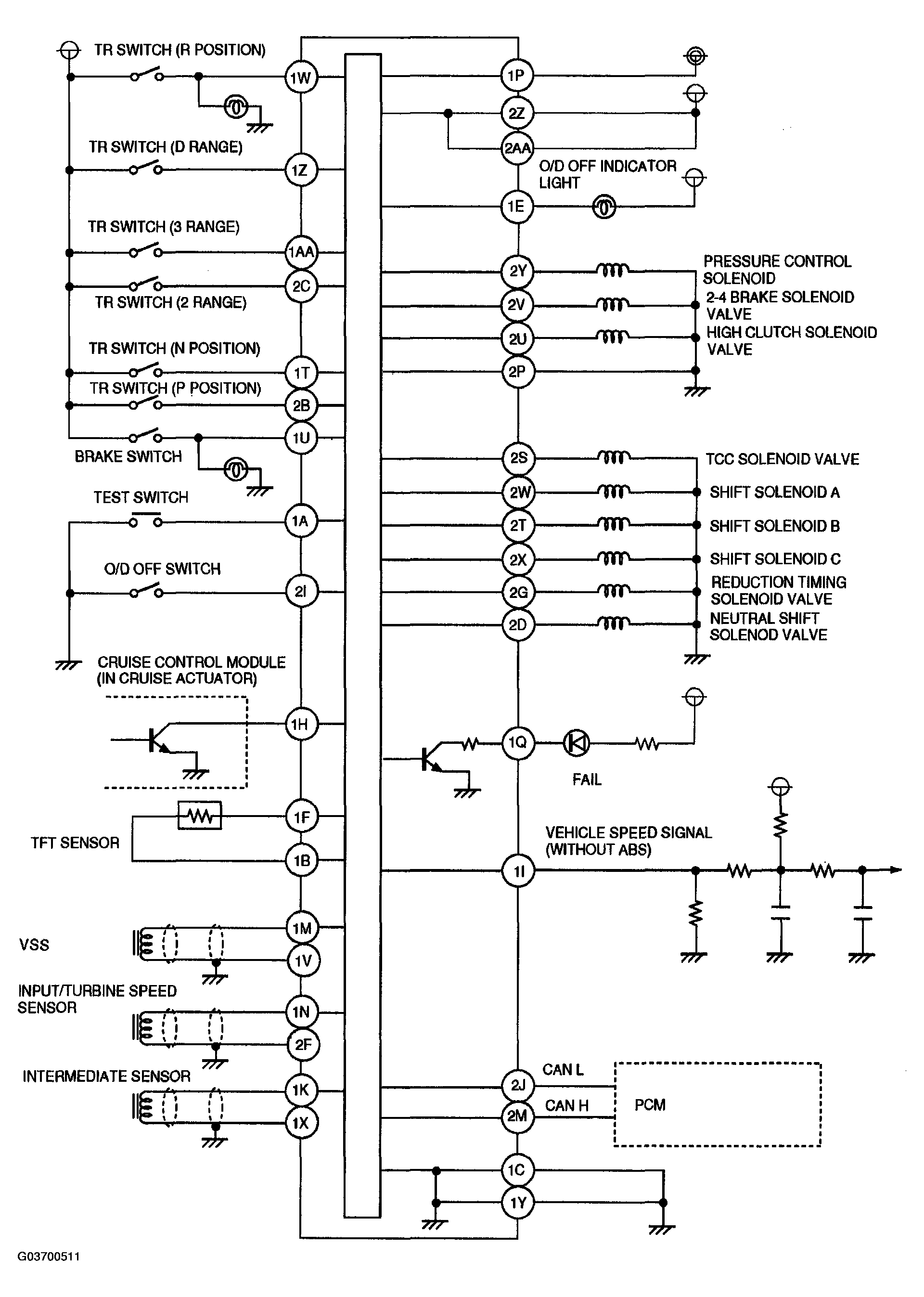

Fig 1: Automatic Transaxle Control System Wiring Diagram
G03700511Courtesy of MAZDA MOTORS CORP.
