Engine Mount Member Installation Note

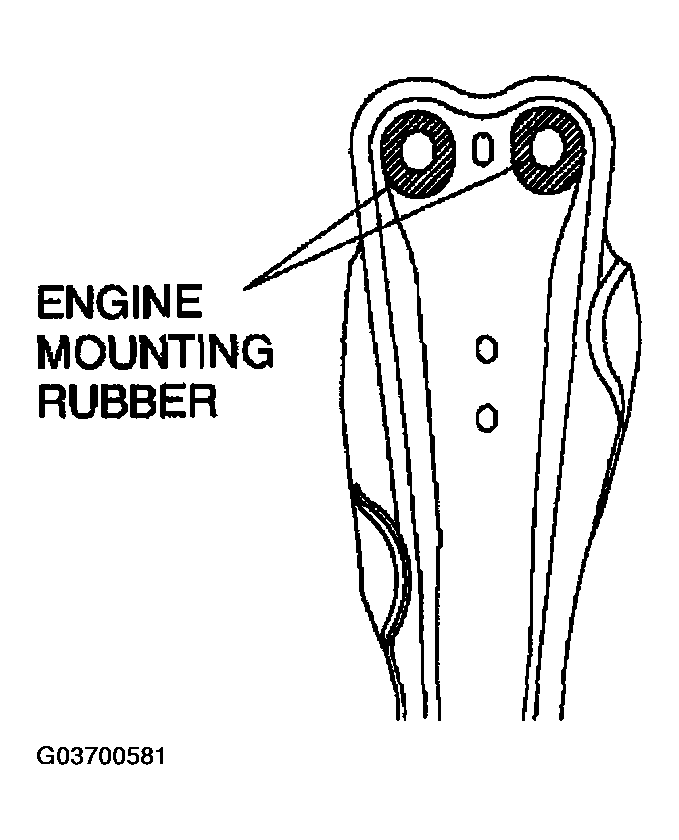

- Position the direction indicator on engine mount member bushings facing toward the front side, and install the bushings onto the engine mount member.
- To install the engine mount member, put the No.2 engine mount stud bolts through the engine mount member installation holes.
- Install the engine mount member bolts A and nuts A.
Tightening torque
- A: 64-89 N.m {6.5-9.1 kgf.m 47-65 ft.lbf}
- Loosely tighten the No.2 engine mount nuts B and C.
- Remove the SSTs (engine support).
- Tighten the No.2 engine mount nuts B and C.
Tightening torque
- B: 67-93 N.m {6.8-9.5 kgf.m, 50-68 ft.lbf}
- C: 85-116 N.m {8.7-11.9 kgf.m, 63-85 ft.lbf}
