Drive Plate Removal/Installation: Notes

  1. Remove in the order indicated in the table.

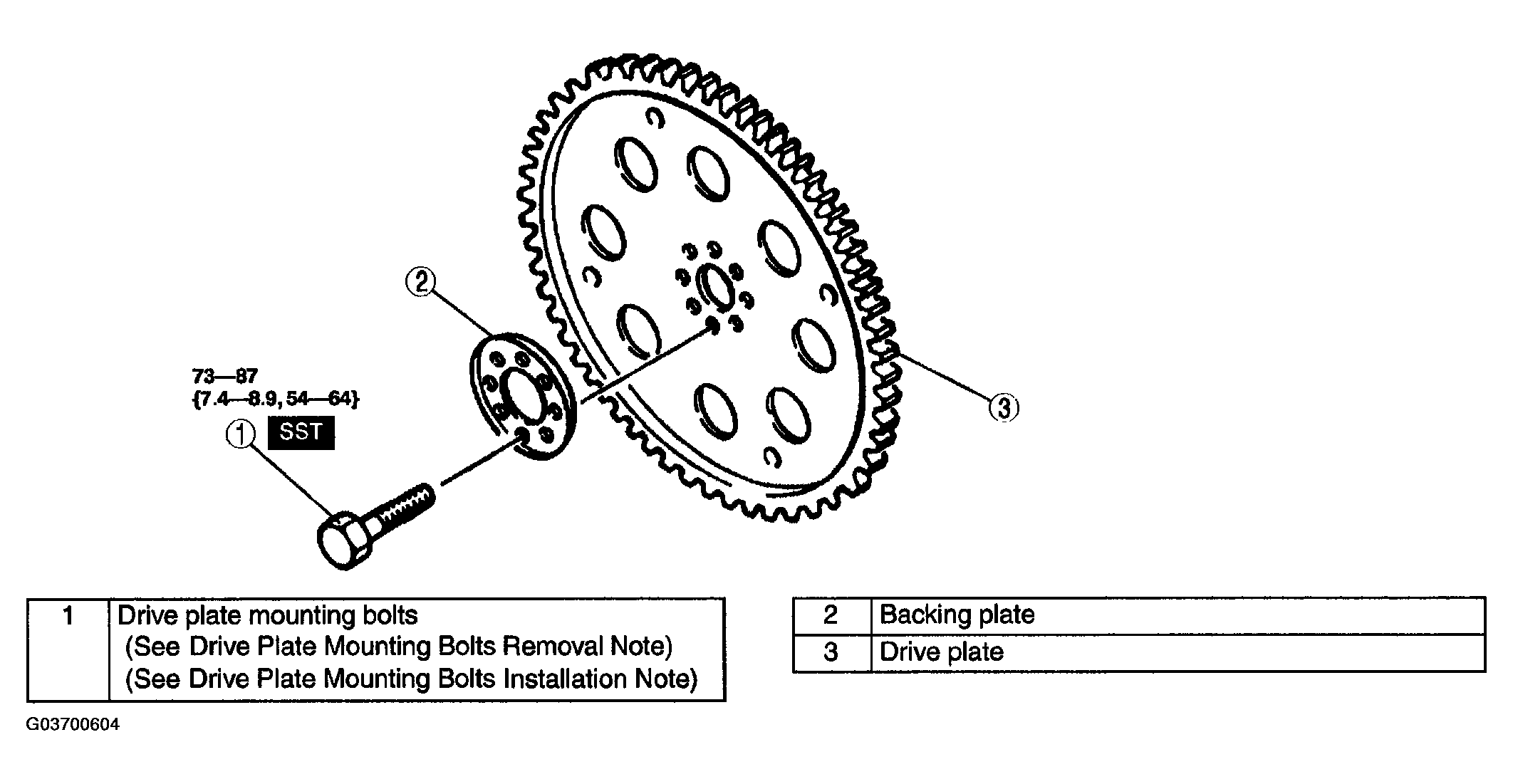

    Fig 1: Removing Drive Plate Components - With Torque Specification
    G03700604Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
