Torque down request

ABS HU/CM terminal: R ( + ) - AA ( - )
Oscilloscope setting: 1 V/DIV (Y), 5 ms/DIV (X)
Vehicle condition: Idle after warm-up (Engine speed at approximately 650 RPM)

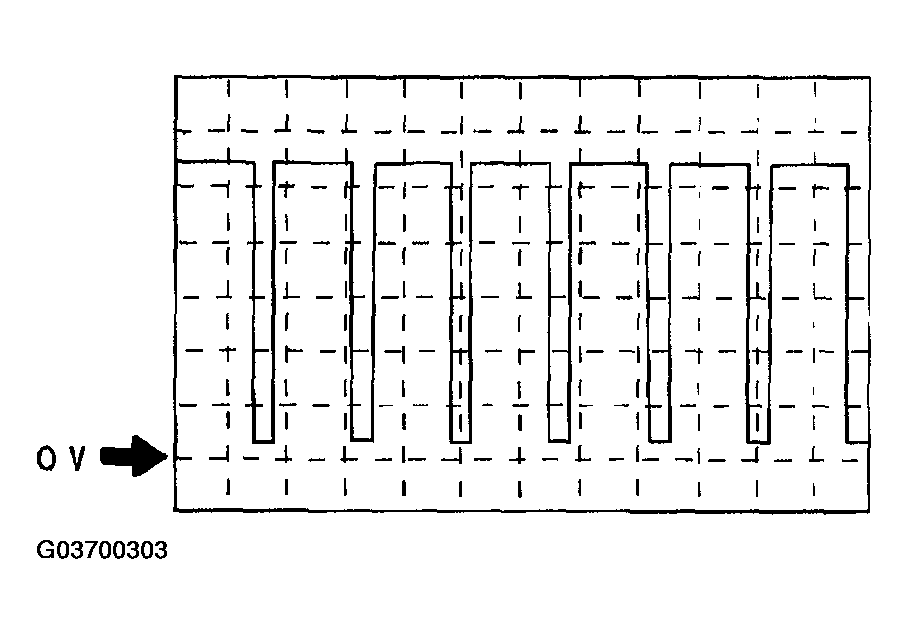

Fig 1: Torque Down Request Oscilloscope Graph
Courtesy of MAZDA MOTORS CORP.
