On-Board Diagnostic (Engine Control System AJ]
›
DTC P0401
›
With Rear H02S Model
With Rear H02S Model

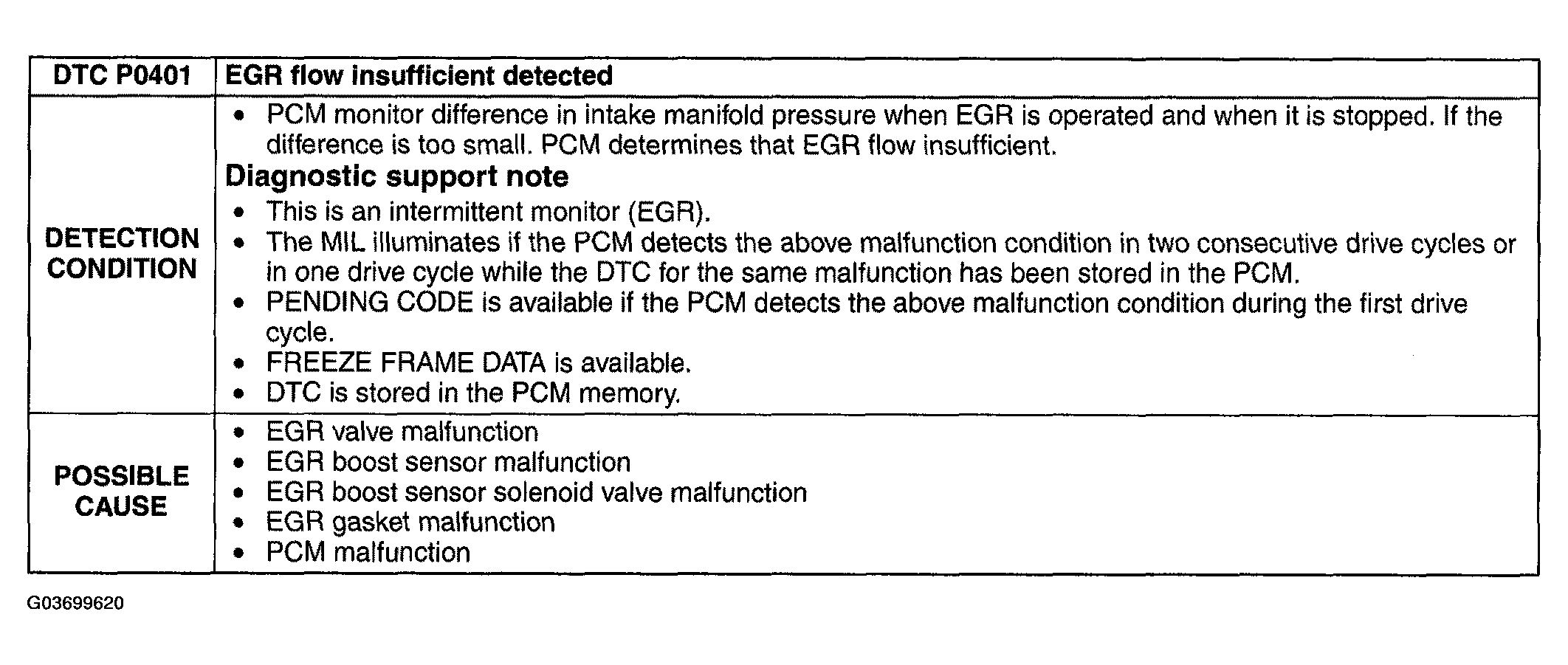

Fig 1: DTC P0401 - Detection Condition And Possible Cause (With Rear H02S Model)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
