Hood Lock And Opener Removal/Installation

  1. Remove in the order indicated in the table.

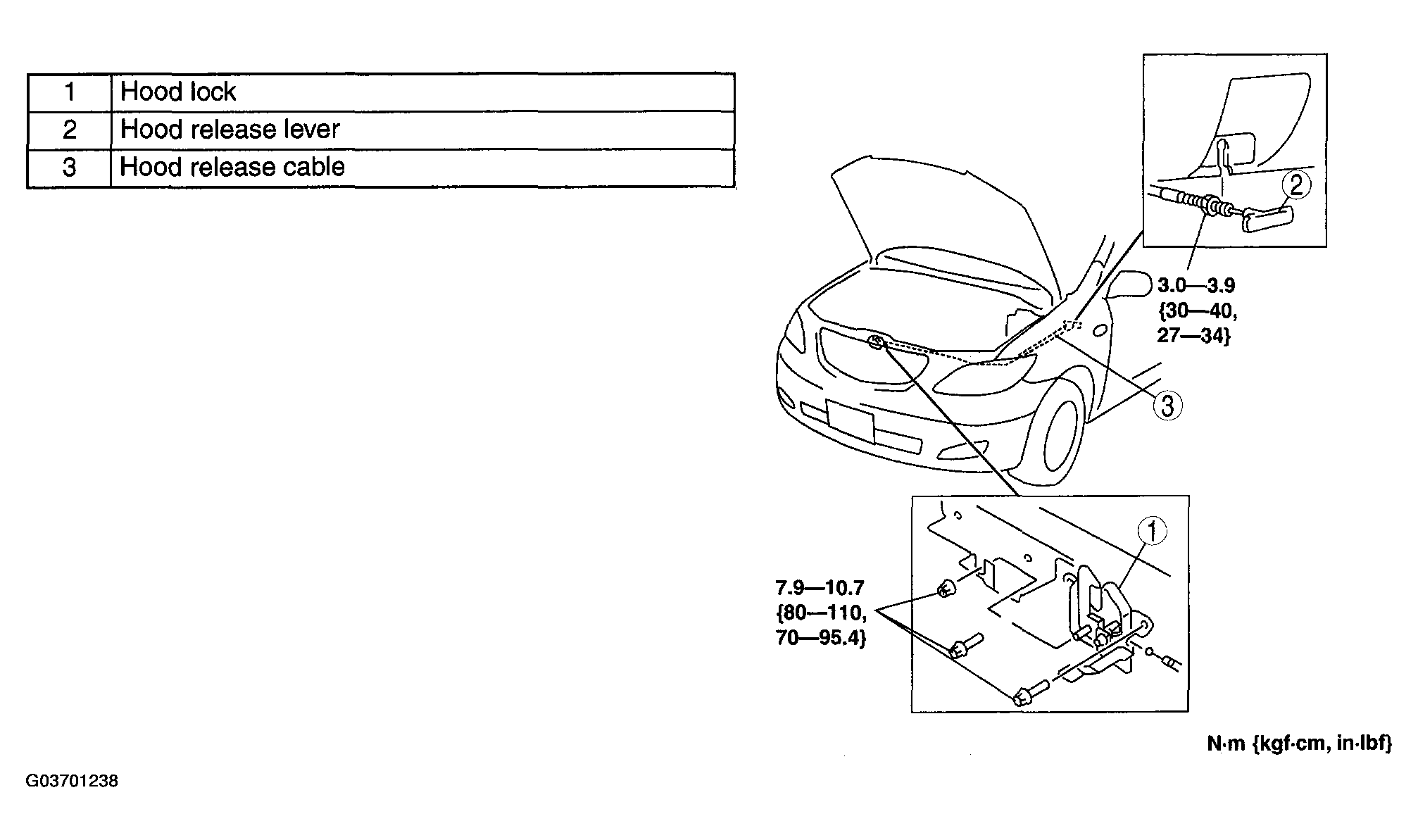

    Fig 1: Removing Hood Lock And Opener - With Torque Specifications
    G03701238Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
