Second-Row Seat Disassembly/Assembly

  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

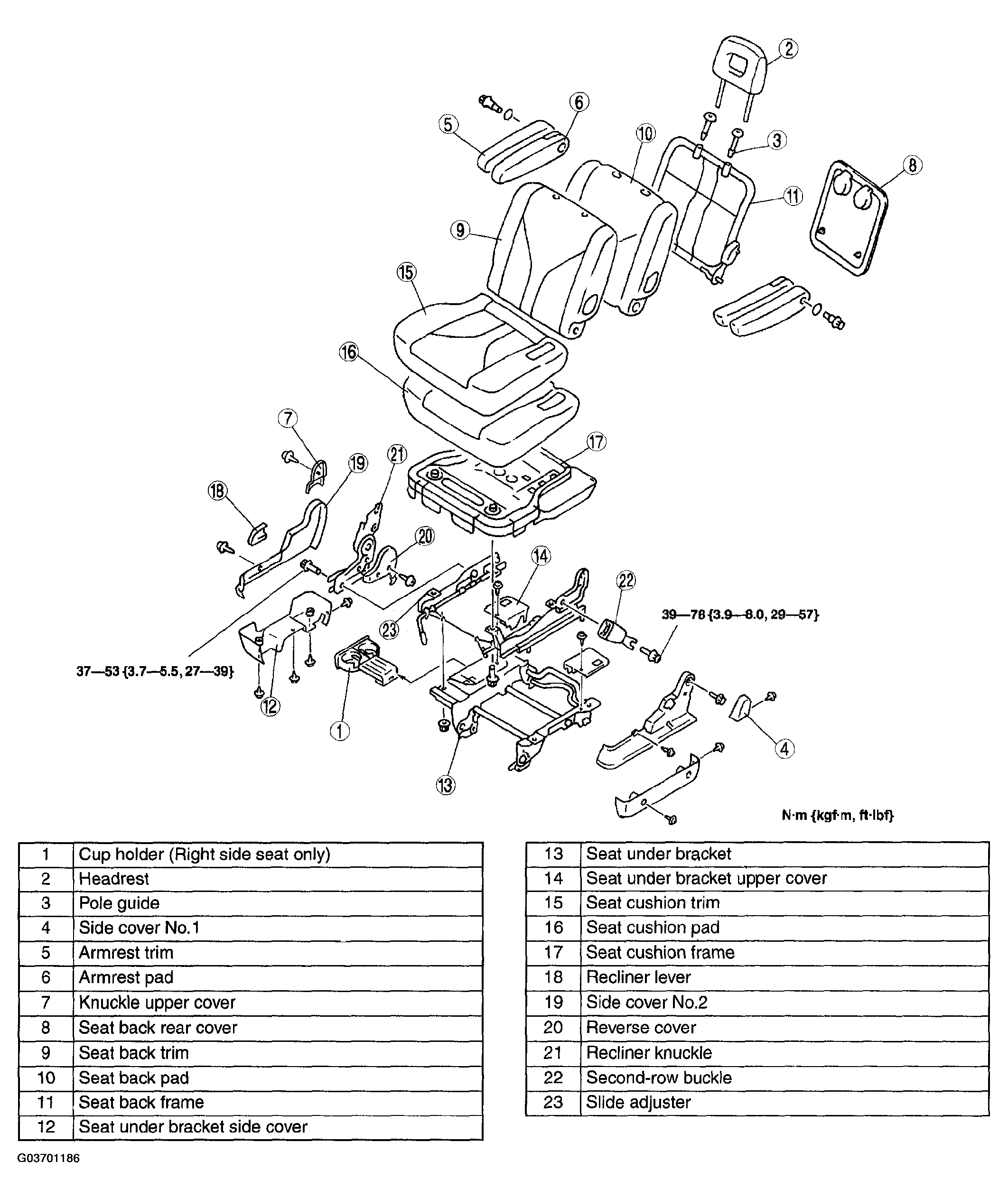

    Fig 1: Exploded View Of Second-Row Seat Assembly - With Torque Specification
    G03701186Courtesy of MAZDA MOTORS CORP.
