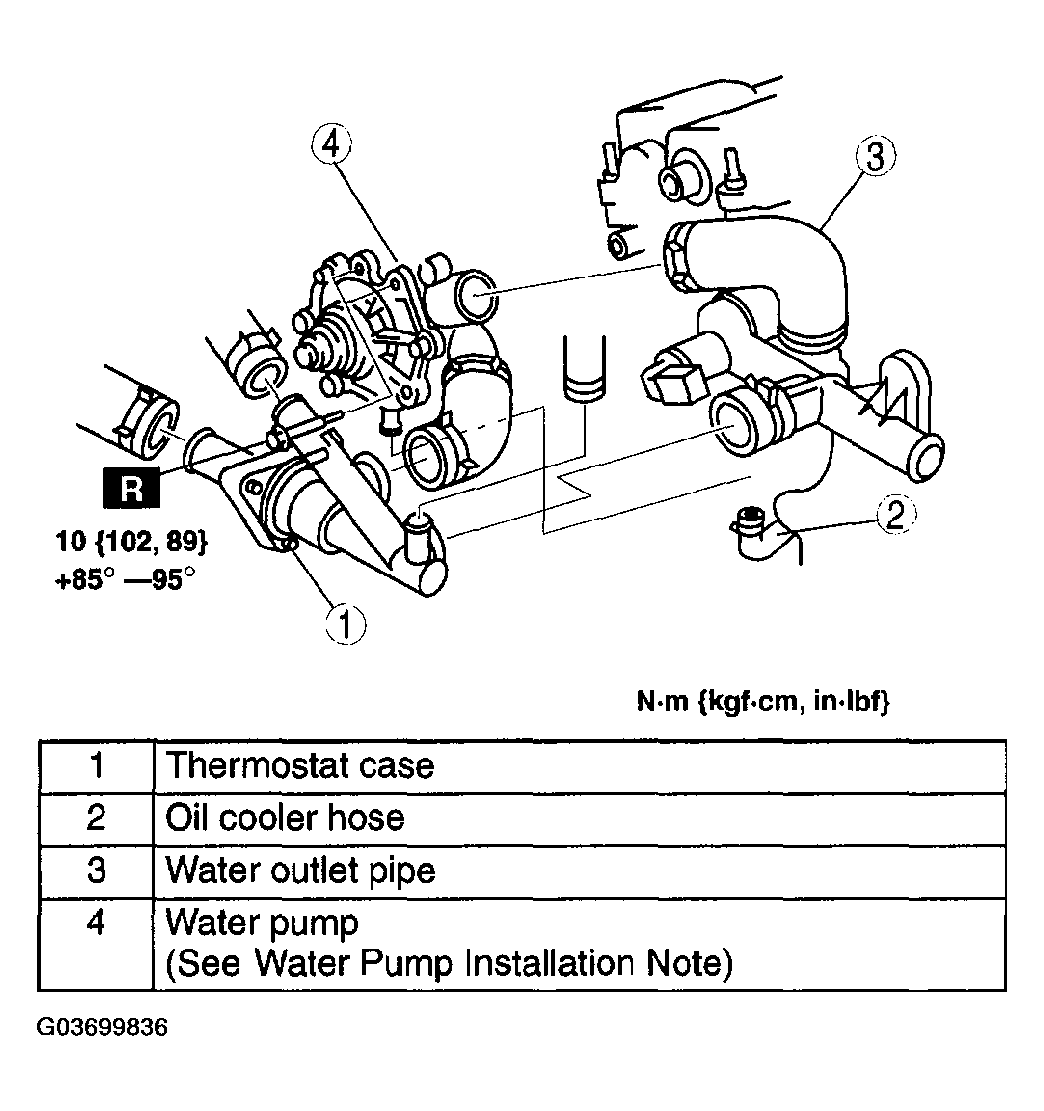

Water Pump Removal/Installation: Notes
- Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION .)
- Drain the engine coolant. (See COOLING SYSTEM SERVICE WARNINGS .) (See ENGINE COOLANT REPLACEMENT .)
- Remove the water pump drive pulley. (See WATER PUMP DRIVE BELT PULLEY REMOVAL NOTE .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
