Symptom Troubleshooting (Engine Control System) AJ
›
Symptom Quick Diagnosis Chart
›
Quick Diagnosis Chart
Quick Diagnosis Chart

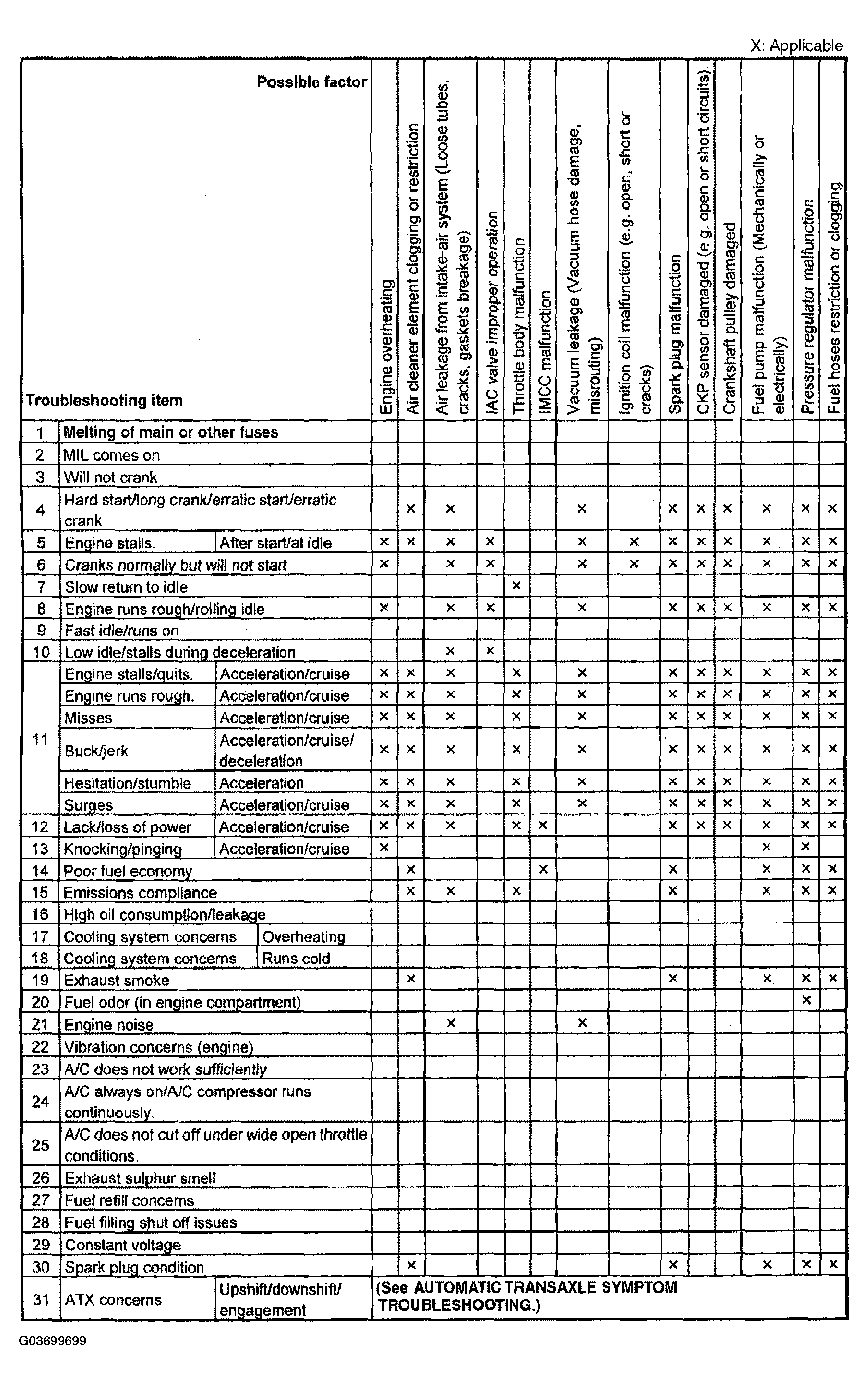

Fig 1: Symptom Quick Diagnosis Chart (1 Of 4)
Courtesy of MAZDA MOTORS CORP.
Fig 2: Symptom Quick Diagnosis Chart (2 Of 4)
Courtesy of MAZDA MOTORS CORP.
Fig 3: Symptom Quick Diagnosis Chart (3 Of 4)
Courtesy of MAZDA MOTORS CORP.
Fig 4: Symptom Quick Diagnosis Chart (4 Of 4)
Courtesy of MAZDA MOTORS CORP.
