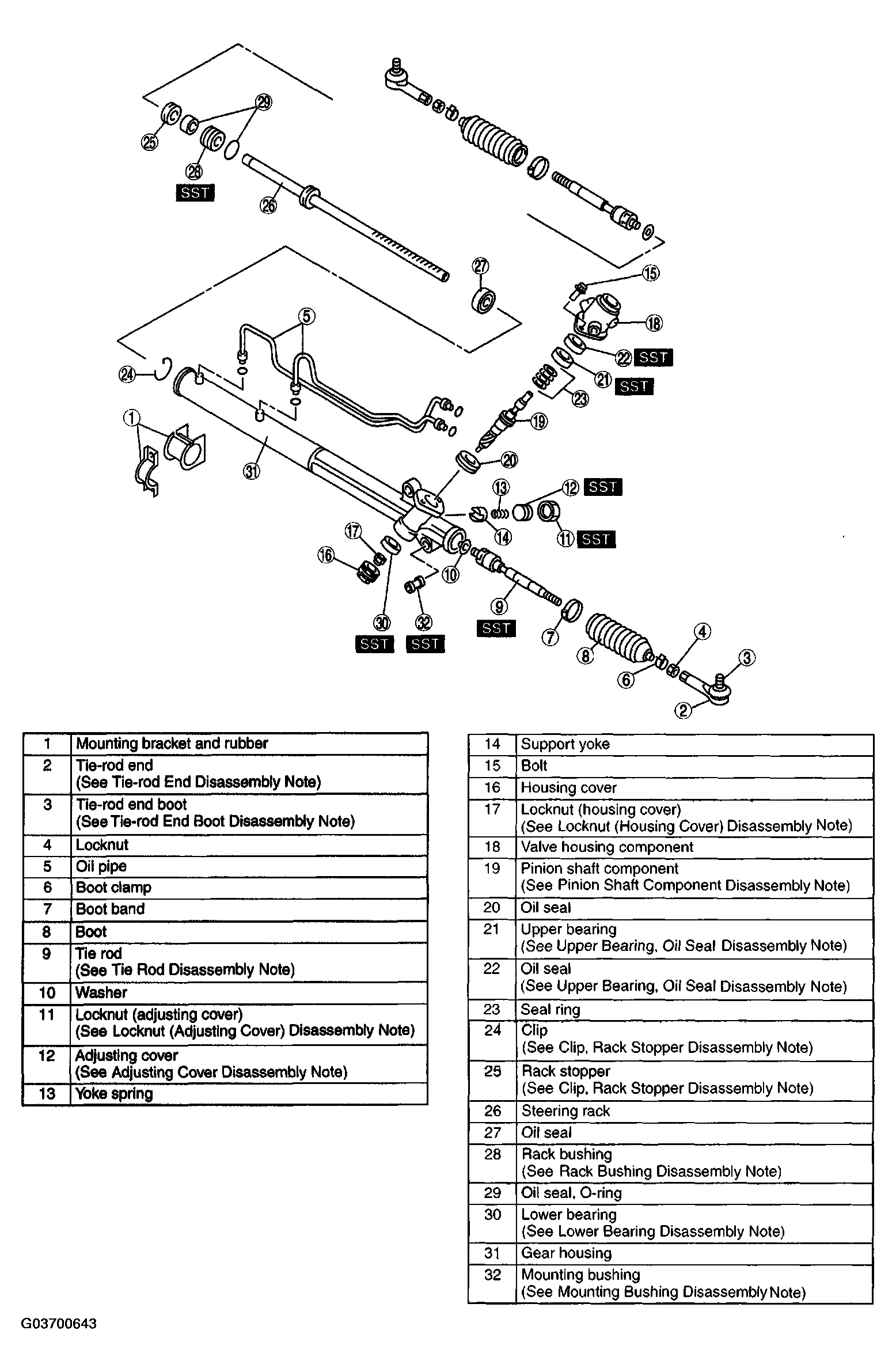

Steering Gear And Linkage Disassembly: Notes
CAUTION:
- Place copper plates, rag, or similar material in a vise when securing the mounting bracket portion of the steering gear.
NOTE:
- There are two types of boot bands: crimp type and screw type.
- Crimp-type boot bands cannot be reused.
- Disassemble in the order indicated in the table.
